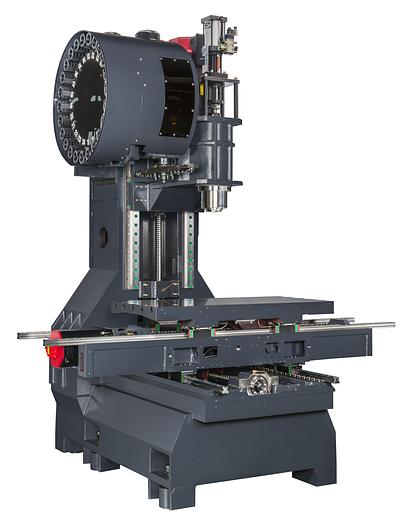

LEADWELL 3 Axis Vertical Machining Center V-42AF
LEADWELL 3 Axis Vertical Machining Center V-42AF
Contact us for price
Hampshire, IL
orCall 712-737-8700
Description
Equipped with:
Fanuc 0i-MF PLUS control
Full enclosed splash guard
Heat exchanger
Grease pneumatic lubricator
Air gun
Coolant gun
Pallet packing
Coolant ring
Chip conveyor (Auger type)
4 bar pump
Base wash
Fanuc 0iMF/10.4"/a15i-12ki spindle motor (non 3 in 1)
Top cover
CTS preparation CAT/CAT
Separate tool arm
Beauty sheet metal for rear side
12,000 RPM spindle (Royal V belt)
SMC Air filter
Regulator
Lubricator
Specifications
| Manufacturer | LEADWELL 3 Axis Vertical Machining Center |
| Model | V-42AF |
| Condition | New |
| Serial Number | L2TBA0447 |
| X axis travel | 1000mm/39.37" |
| Y axis travel | 520mm/20.47" |
| Z axis travel | 610mm/24.02" |
| Table size | 1100mm x 500mm/43.31" x 19.69" |
| Permissible mass of workpiece | 800 KG/17,641 LBS |
| Spindle speeds | 10,000 RPM |
| Maximum spindle torque | 93.2 Nm (cont./60 min) |
| Feed rate | 48/48/36 m/min |
| Tool storage capacity | 24 |
| Maximum tool length | 250 mm/9.84" |
| Spindle motor | 15/18.5 KW (cont./60 min) |
| X/Y/Z axis feed motor | 4/4/4 KW |
| Dimensions | 155.51" x 90.55" x 100.4" |
| Machine weight | 5,900 KG/13,100 LBS |
| Power supply | 35 KVA |
