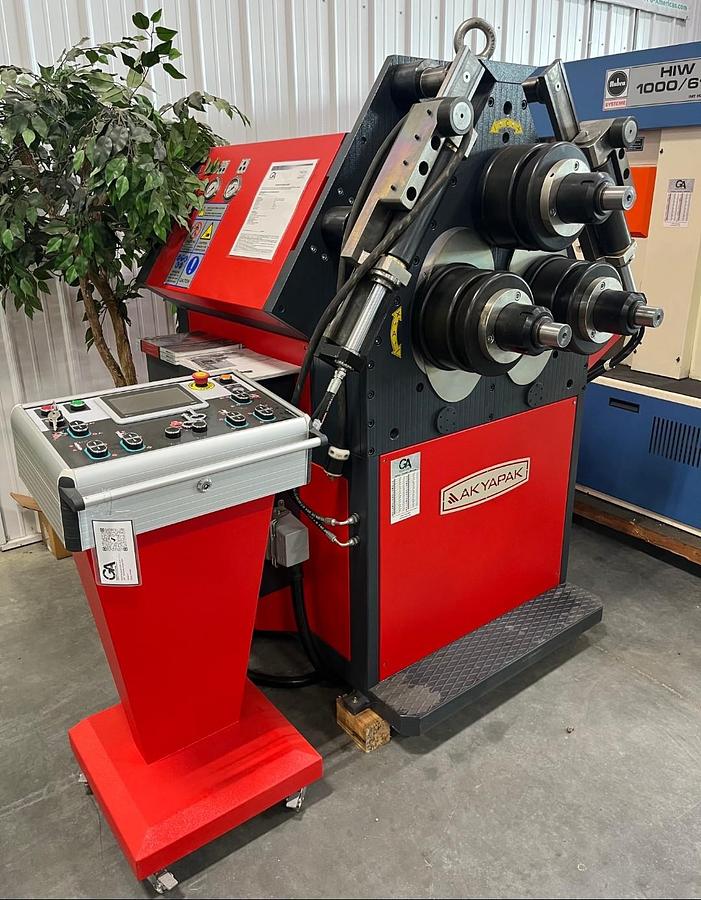

Akyapak APK 81 3" x 3" x 3/8" Hydraulic Angle Roll APK 81

Akyapak APK 81 3" x 3" x 3/8" Hydraulic Angle Roll APK 81

$55,000 (USD)

Location:Orange City, IA

orCall 712-737-8700

Description

Equipped with:

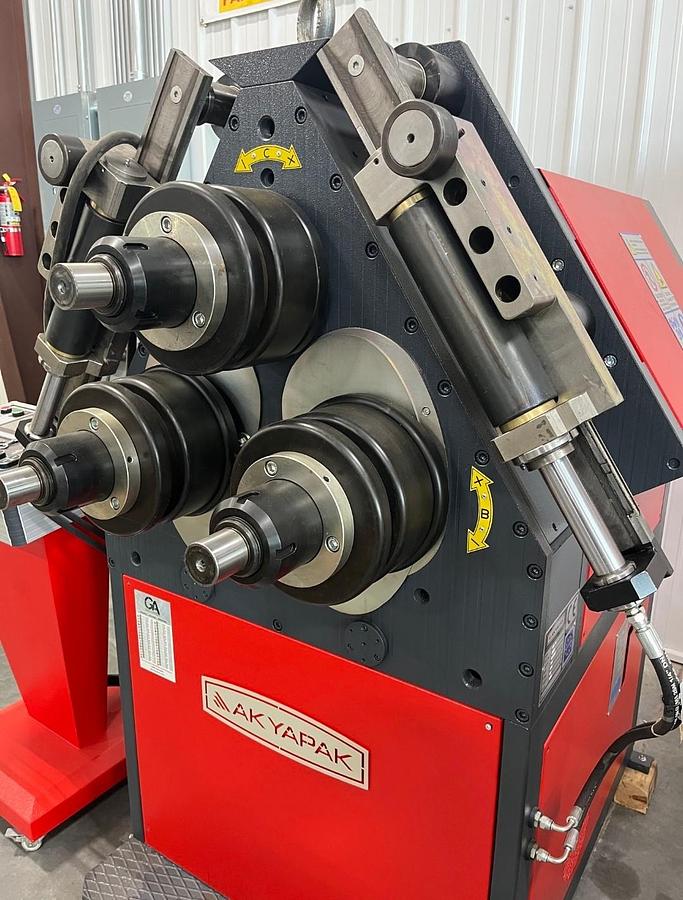

1 set of standard rolls

All steel construction

All shafts are made of special hardened ground steel

Bottom rolls move hydraulically

DRO for bottom rolls

Hydraulic adjusted guide rolls

Manual lubrication

Horizontal or vertical working position

Rolls are driven hydraulically

Specifications

ManufacturerAkyapak APK 81 3" x 3" x 3/8" Hydraulic Angle Roll
ModelAPK 81
ConditionNew
Serial Number811037
Stock Number10841
Capacity angle easy3" x 3" x 3/8" to 63" diameter
Capacity angle hard3" x 3" x 3/8" to 78" diameter
Roll diameter9.65"
Shaft diameter3.15"
Bending speed13 FPM
Main motor6.8 HP, 480V
Overall dimensions5' x 5' x 6'
Machine weight3,300 LBS
