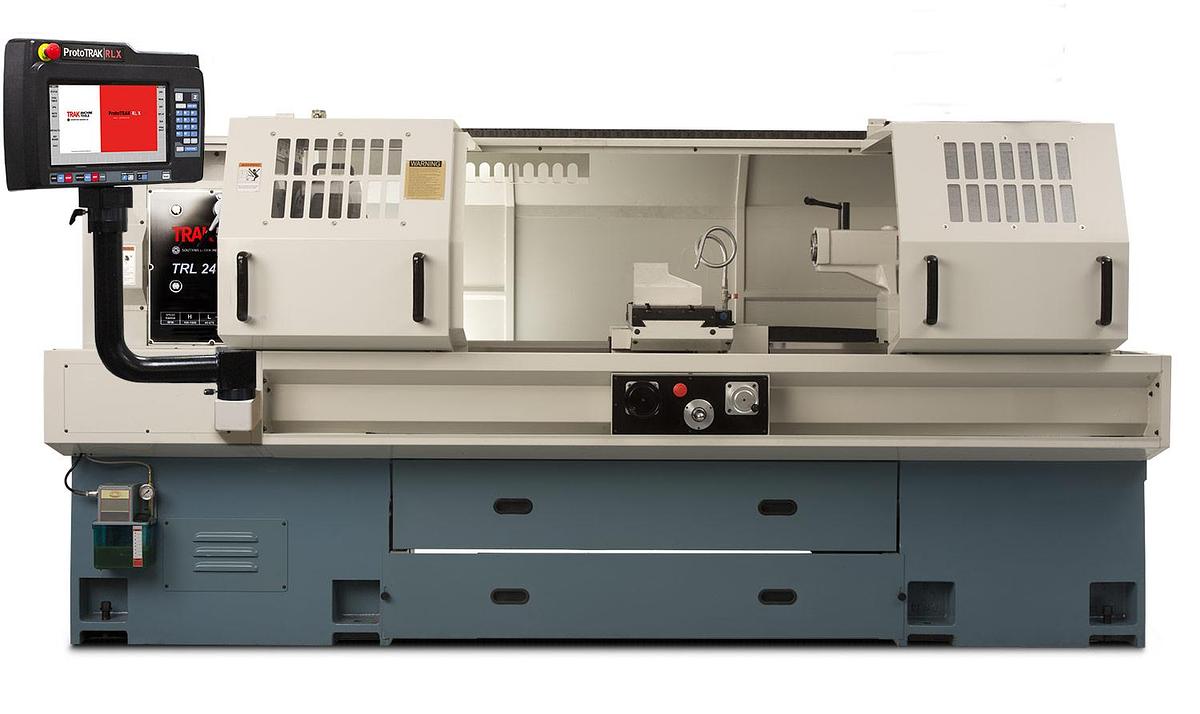

TRAK TRL 2470RX CNC Lathe w/RLX Control TRL 2470RX

TRAK TRL 2470RX CNC Lathe w/RLX Control TRL 2470RX

Contact us for price

Location:California

or
Call 712-737-8700

Description

Available options for additional cost:

Coolant pump

LED work lights

Buck chuck

4 or 8 station turrets

Tailstock

Tooling kit

Faceplate

Follow rest

Steady rest

Remote stop/go switch

Limit switches

TRAK USB memory storage

Extended warranty

TRAKing

CAM file out converter

Auxiliary output

Offline programming

DXF converter

Advanced features w/verify

MTConnect


Specifications

ManufacturerTRAK TRL 2470RX CNC Lathe w/RLX Control
ModelTRL 2470RX
ConditionNew
Stock NumberTRL2470RX
Closed height12"
Distance between centers70"
Swing over bed24"
Swing over saddle wings24"
Swing over cross slide14.5"
Cross slide travel12.5"
Tool section max1"
Coolant tank capacity15 gallons
Coolant pump motor1/8 HP
Bed width14.57"
Bed height15"
Spindle noseD1-8
Spindle through hole4.09"
Spindle taperMT#8
Spindle diameter front bearing5.51"
Number of bearings2
Number of spindle speed ranges2
Spindle speed range40-670, 100-1800 RPM
Spindle motor15 HP
Voltage200-240V
Main motor200V/3PH/60Hz
Quill travel8.5"
Quill diameter3.5"
Quill taper5 MT
Maximum rapid400 IPM on Z axis
Machine dimensions129" x 60" x 77"
Machine weight6,500 LBS
