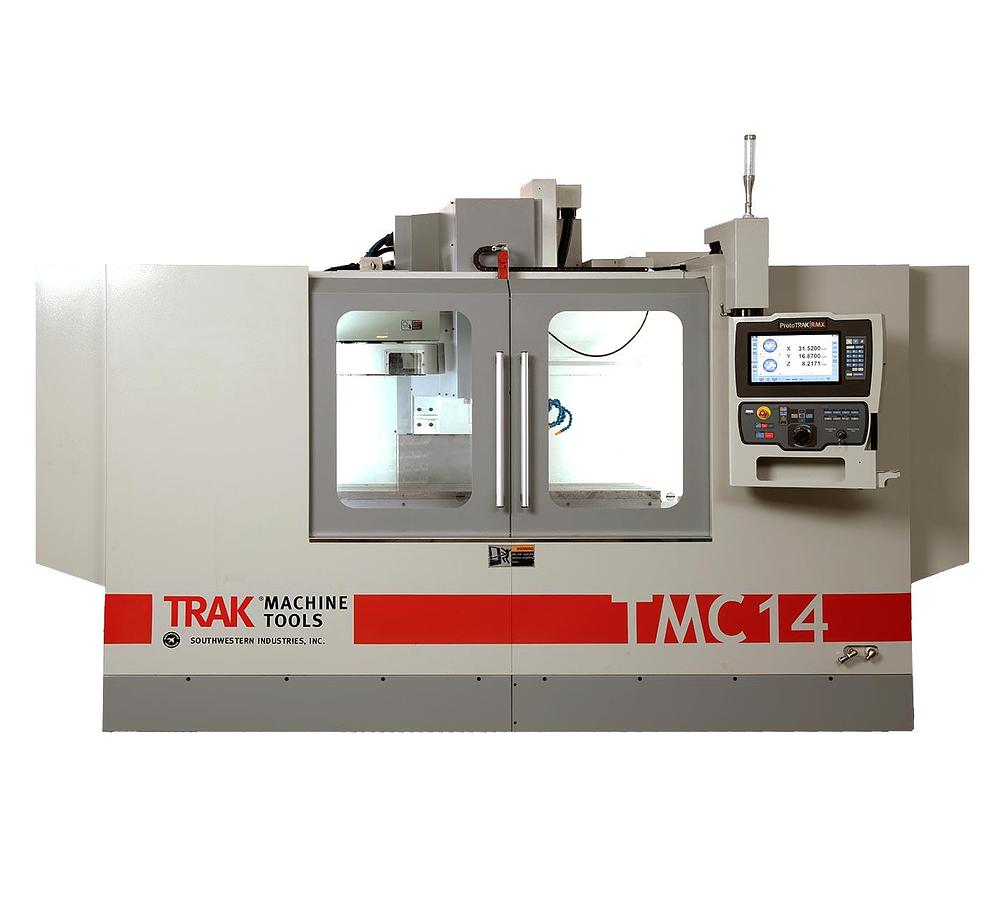

TRAK TMC14 Toolroom Machining Center w/ProtoTRAK RMX Control TMC14
TRAK TMC14 Toolroom Machining Center w/ProtoTRAK RMX Control TMC14
Contact us for price
Location:California
or
Call 712-737-8700
Description
Available options for additional cost:
Electronic handwheels
Offline programming
Remote stop/go switch
Vise kit
Tool measurement cart
Internal memory drive
Transformer option
Gripper – BT40 tooling
Retention knobs – Cat 40 tooling
Auxiliary functions
4th axis
12K spindle
CTS
Specifications
| Manufacturer | TRAK TMC14 Toolroom Machining Center w/ProtoTRAK RMX Control |
| Model | TMC14 |
| Condition | New |
| Stock Number | TMC14 |
| Table size | 23.62" x 62.99" |
| T-slots (number x width x pitch) | 5 x .709" x 4.921" |
| Travel (X,Y,Z axis) w/soft limits | 60" x 27" x 25" |
| Spindle taper | 40 taper |
| Spindle speed range | 50-8,000 RPM |
| Spindle nose diameter | 3-3/4" |
| Tool clamping force (90 psi) | 2,200 LBS |
| Tool holder type | CAT40 or BT40 |
| ATC tool capacity | 16 |
| Maximum tool weight | 15 LBS |
| Maximum tool diameter | 3.14" |
| Carousel speed | 0.8 sec/station to station |
| Tool selection system | Bi-directional/shortest path |
| Spindle motor-peak | 22.5 HP |
| Spindle motor-continuous | 15 HP |
| Power requirements | 208/480V |
| Maximum weight of workpiece | 2,640 LBS |
| Table height | 38.37" |
| Minimum spindle nose to table distance | 2.25" |
| Maximum spindle nose to table distance | 28.75" |
| Distance of tool carousel to table | 21.5" |
| Rapid traverse X,Y,Z | 1,000 IPM |
| Coolant tank capacity | 70.5 gallons |
| Machine dimensions | 120.5" x 224.13" x 156.22" |
| Machine weight | 16,500 LBS |
