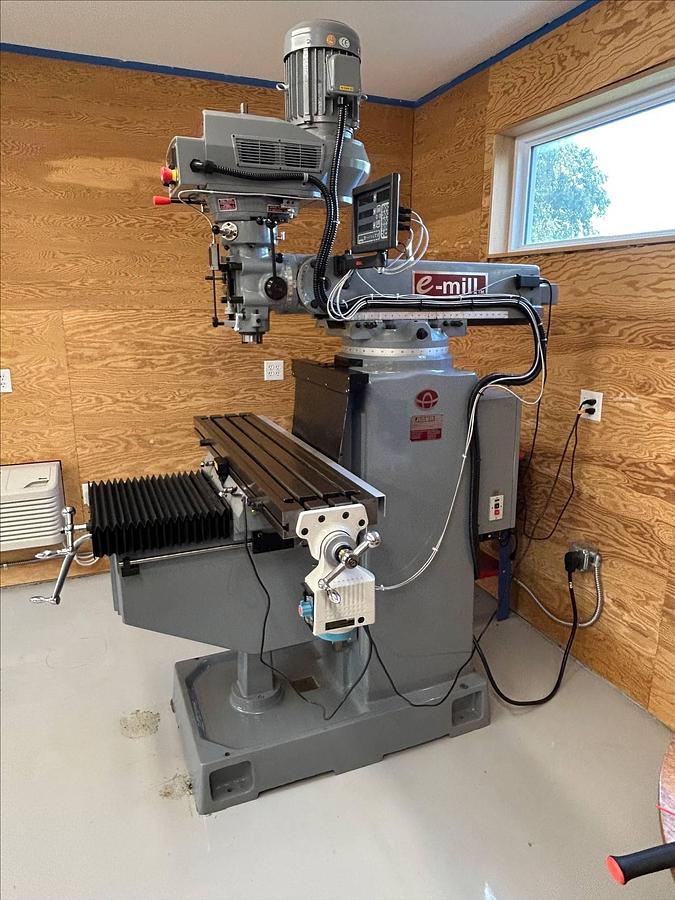

2018 ACER 3VKH Vertical Knee Mill 3VKH
2018 ACER 3VKH Vertical Knee Mill 3VKH
$17,500 (USD)
Location:Iowa
Description
Equipped with:
Newall 3 axis DRO
NST#30 taper spindle
Ball screw upgrade on X & Y axis
(2) draw bars
Starrett dial indicator (like new in box)
Starrett spindle square #649-5 (like new in box)
SPI precision parallel bars (4 pairs in wood box)
NOGA magnetic holding system
MARITOOL BT30 APU13 precision drill chuck w/wrench (serial #A79914)
MARITOOL BT30 20 piece E Collet set
MARITOOL BT30 ER32-52 Collet chuck tool holder (serial #A62548)
MARITOOL ER32 Collet wrench
Orange OV-100-102 6” x 17.5” single station vise
Numerous cutting tools (like new in package)
3 HP spindle inverter motor
Toshiba inverter control variable speeds
US made Allen-Bradley electrical components
Precision grinding head housing
Electric brake
Precision spindle w/ABEC-7 bearings
Chrome plated and precision ground spindle quill
Precision X,Y axes and knee by hardened & ground square ways to HRC 52
Rigid meehanite GA-50 casting
One shot lubrication
Specifications
| Manufacturer | ACER 3VKH Vertical Knee Mill |
| Model | 3VKH |
| Year | 2018 |
| Condition | Used |
| Serial Number | F18070363 |
| Stock Number | 11137 |
| Table size | 10" x 50" |
| Longitudinal travel | 32.5" or (36.5") |
| Cross travel | 17" |
| Vertical knee travel | 19" |
| Ram travel | 20" |
| T-slots (number x size) | 3 @ 5/8" |
| Main motor | 3 HP |
| Head tilt (L-R) | 90 degrees |
| Head tilt (F-B) | 45 degrees |
| Spindle drive | Variable |
| Spindle speeds | 60-4,500 RPM |
| Spindle taper | R-8 |
| Power quill feed (in/rev) | 0.0015", 0.003", 0.006" |
| Quill diameter | 3-3/8" |
| Quill travel | 5" |
| Approximate weight | 3,300 LBS |
