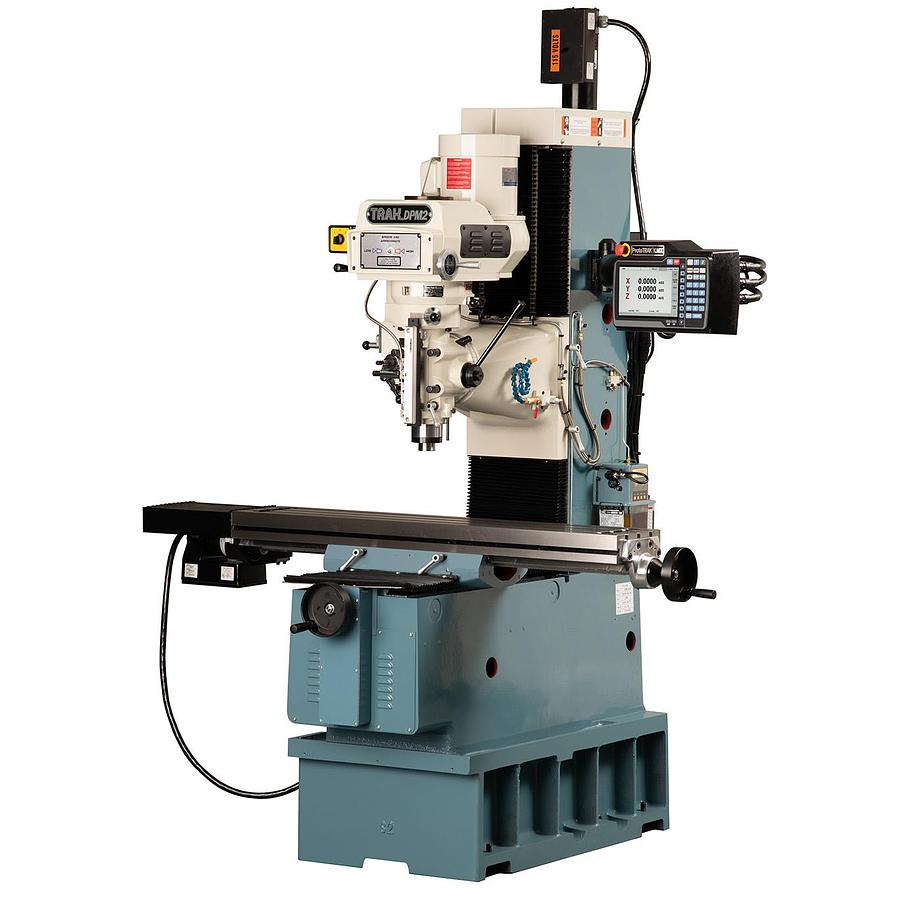

TRAK DPM KX2 Bed Mill w/ProtoTRAK KMX Control KX2
TRAK DPM KX2 Bed Mill w/ProtoTRAK KMX Control KX2
Contact us for price
Location:California
or
Call 712-737-8700
Description
Available options for an additional cost:
Glass scales
Auxiliary functions
Electronic handwheels
Remote stop/go switch
Power drawbar
TRAK USB memory storage
30 Taper spindle option
Work lamp
Chip pan
Splash shield
Coolant pump
Spray coolant
Table guard enclosure
Limit switches
Vise
Specifications
| Manufacturer | TRAK DPM KX2 Bed Mill w/ProtoTRAK KMX Control |
| Model | KX2 |
| Condition | New |
| Stock Number | DPMKX2 |
| Table size | 49" x 9" |
| T-slots (number x width x pitch) | 3 x .63" x 2.5" |
| Table travels (X,Y,Z axis) | 31" x 16" x 23.25" |
| Quill diameter | 3-3/8" |
| Maximum quill travel | 5" |
| Spindle taper | R-8 |
| Spindle speed range | 60-4200 RPM |
| Spindle motor | 3 HP |
| Power requirements | 220/440V, 3 PH |
| Maximum weight of workpiece | 1,320 LBS |
| Table height | 36.75" |
| Rapid traverse X & Y | 100 IPM, 150 IPM on Z |
| Drilling maximum capacity | 1" |
| Milling maximum capacity | 3 IPM |
| Tapping maximum capacity | 3/4-10" |
| Maximum spindle nose to table | 26.75" |
| Machine dimensions | 67" x 104" x 97" |
| Machine weight | 3,200 LBS |
