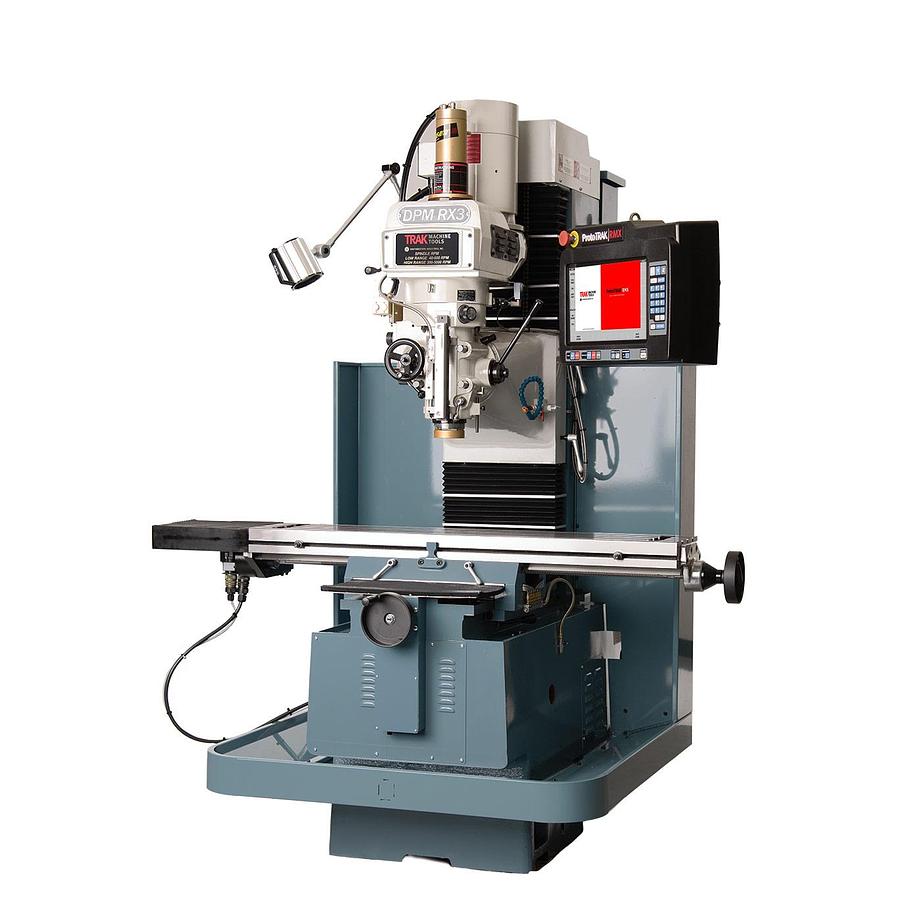

TRAK DPM RX3 Bed Mill w/ProtoTRAK RMX Control DPM RX3
TRAK DPM RX3 Bed Mill w/ProtoTRAK RMX Control DPM RX3
Contact us for price
Location:California
or
Call 712-737-8700
Description
Available options for an additional cost:
Glass scales
Auxiliary functions
Electronic handwheels
Remote stop/go switch
Power drawbar
TRAK USB memory storage
Work lamp
Chip pan
Splash shield
Coolant pump
Spray coolant
Table guard enclosure
Limit switches
Vise
Specifications
| Manufacturer | TRAK DPM RX3 Bed Mill w/ProtoTRAK RMX Control |
| Model | DPM RX3 |
| Condition | New |
| Stock Number | DPMRX3 |
| Table size | 10" x 50" |
| T-slots (number x width x pitch) | 3 x .63" x 2.48" |
| Table travels | 31.5" x 17" x 25.5" |
| Quill diameter | 3-15/16" |
| Maximum quill travel | 5" |
| Spindle taper | 40 taper |
| Spindle speed range | 40-600, 300-5000 RPM |
| Spindle motor | 5 HP |
| Power requirements | 200/240V, 3 PH |
| Maximum weight of workpiece | 1,320 LBS |
| Table height | 36.75" |
| Maximum spindle nose to table | 25.81" |
| Rapid traverse X,Y,Z | 250 IPM |
| Drilling maximum capacity | 1" |
| Milling maximum capacity | 5 IPM |
| Tapping maximum capacity | 1-8" |
| Machine dimensions | 76.63" x 73.5" x 96.75" |
| Machine weight | 4,100 LBS |
