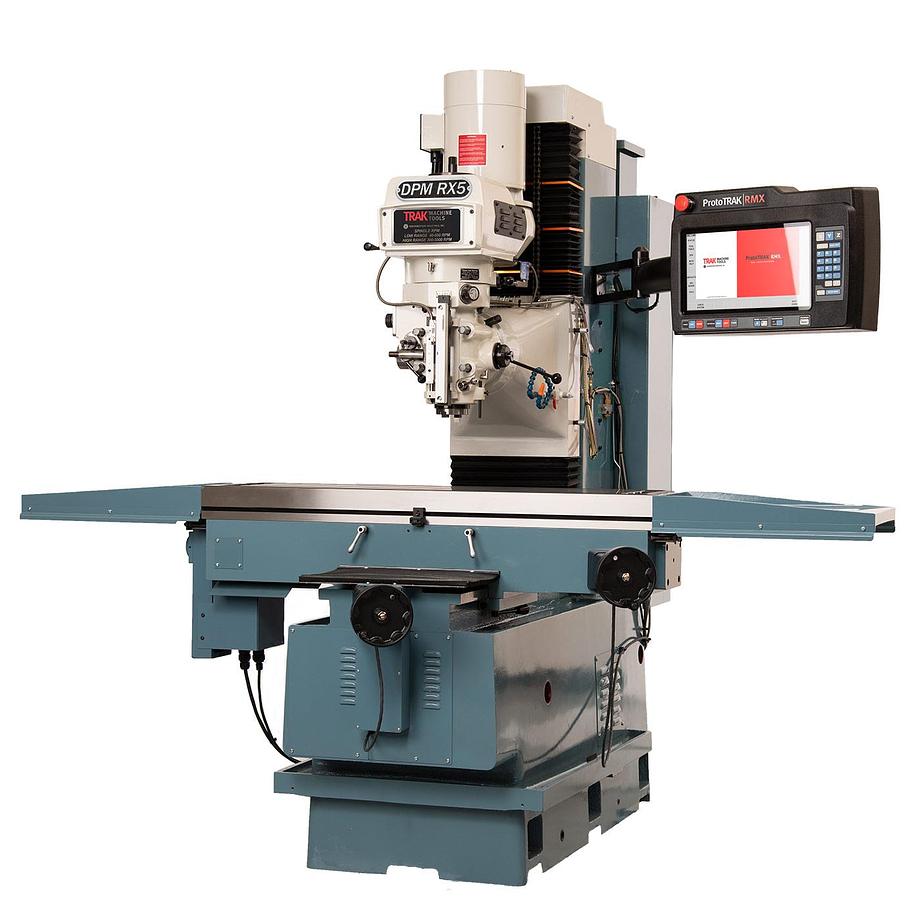

TRAK DPM RX5 Bed Mill w/ProtoTRAK RMX Control DPM RX5
TRAK DPM RX5 Bed Mill w/ProtoTRAK RMX Control DPM RX5
Contact us for price
Location:California
or
Call 712-737-8700
Description
Available options for an additional cost:
Glass scales
Auxiliary functions
Remote stop/go switch
Power drawbar
TRAK USB memory storage
Work lamp
Chip pan
Splash shield
Coolant pump
Spray coolant
Table guard enclosure
Limit switches
Vise
Specifications
| Manufacturer | TRAK DPM RX5 Bed Mill w/ProtoTRAK RMX Control |
| Model | DPM RX5 |
| Condition | New |
| Stock Number | DPMRX5 |
| Table size | 50" x 12" |
| T-slots (number x width x pitch) | 3 x .63" x 2.52" |
| Table travels | 41" x 20.5" x 24" |
| Quill diameter | 3-15/16" |
| Maximum quill travel | 5" |
| Spindle taper | 40 taper |
| Spindle speed range | 40-600, 300-5000 RPM |
| Spindle motor | 5 HP |
| Power requirements | 200/240V, 3 PH |
| Maximum weight of workpiece | 1,760 LBS |
| Table height | 40" |
| Maximum spindle nose to table | 25.81" |
| Rapid traverse X,Y,Z | 400 IPM on X,Y and 250 IPM on Z |
| Drilling maximum capacity | 1" |
| Milling maximum capacity | 5 IPM |
| Tapping maximum capacity | 1-8" |
| Machine dimensions | 82.5" x 94.13" x 102" |
| Machine weight | 4,400 LBS |
