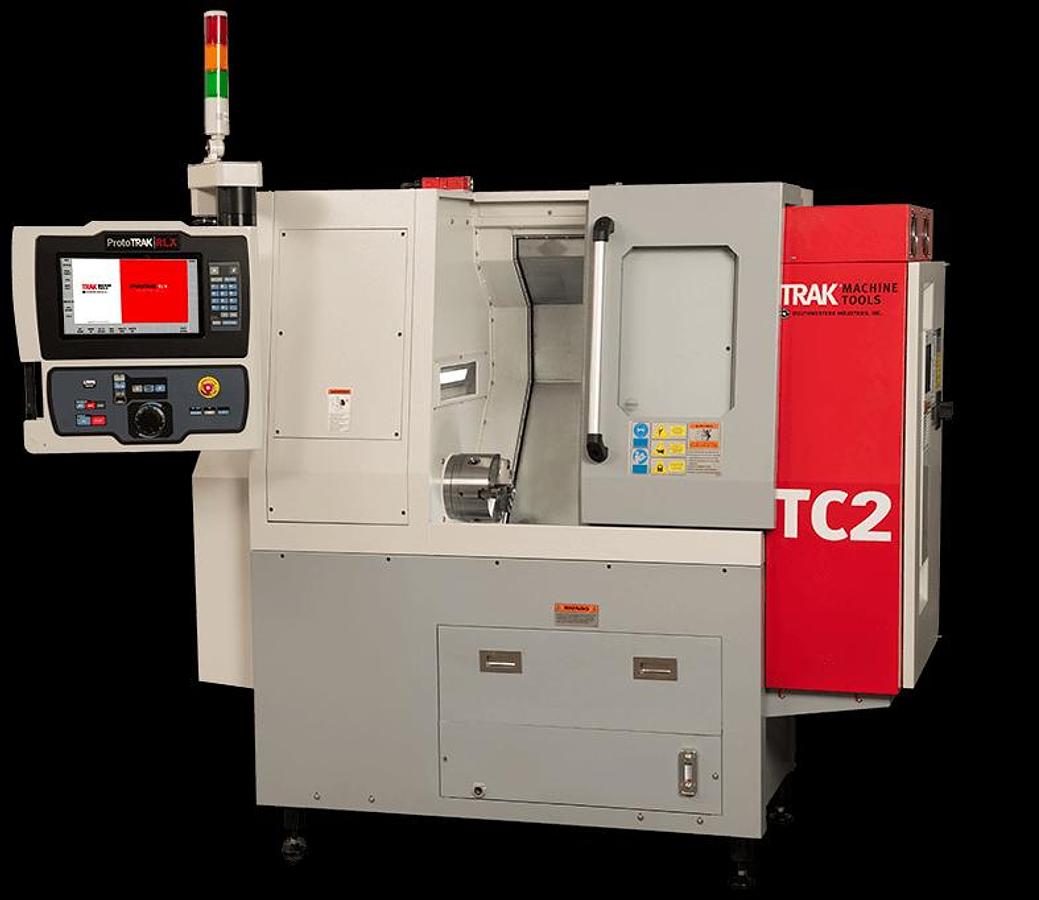

TRAK TC2 Turning Center w/RLX Control TC2
TRAK TC2 Turning Center w/RLX Control TC2
Contact us for price
Location:California
or
Call 712-737-8700
Description
Available options for additional cost:
High speed spindle
Tool tray
480V transformer
5C collet chuck
Bar puller
Hydraulic chuck
Buck chuck
Manual chuck
TRAK USB memory storage
Advanced features w/verify
TRAKing software
CAM file out converter
Auxiliary output
Offline programming
DXF converter
MTConnect
Specifications
| Manufacturer | TRAK TC2 Turning Center w/RLX Control |
| Model | TC2 |
| Condition | New |
| Stock Number | TC2 |
| Maximum swing | 12" |
| Maximum turning diameter | 8" |
| Maximum turning length | 11" |
| X axis travel | 7.5" (direct drive w/brake) |
| Z axis travel | 11.4" (direct drive) |
| Oil pump-way lubrication | 2 liters |
| Rapid speeds (z axis) | 600 IPM |
| Rapid speeds (x axis) | 300 IPM |
| Air requirements | 90 PSI |
| Spindle nose | A2-5 |
| Spindle through hole | 2.4" (manual chuck), 2.047" (hydraulic chuck) |
| Chuck diameter | 8" (manual chuck), 6" (hydraulic chuck) |
| Spindle power | 7.5 HP |
| Spindle through bore | 2.4" |
| Spindle bar capacity | 2.05" |
| Drawtube thread | M60 x 2 mm |
| No. of bearings | 4 |
| Spindle speed range | 50-2500 RPM low speed, high torque; 50-4000 RPM high speed spindle option |
| Spindle motor brake | Dynamic |
| Turret type | Bolt on |
| No. of tools | 8 stations |
| Turning tool shank dimensions | 0.75" x 0.75" |
| Maximum boring bar diameter | 1.25" |
| Turret index/clamping method | Servo motor/pneumatic |
| Voltage | 208/240V, 480V w/transformer option |
| Coolant tank capacity | 15.8 gallons |
| Machine dimensions | 81" x 37" x 76" |
| Machine weight | 3,200 LBS |
