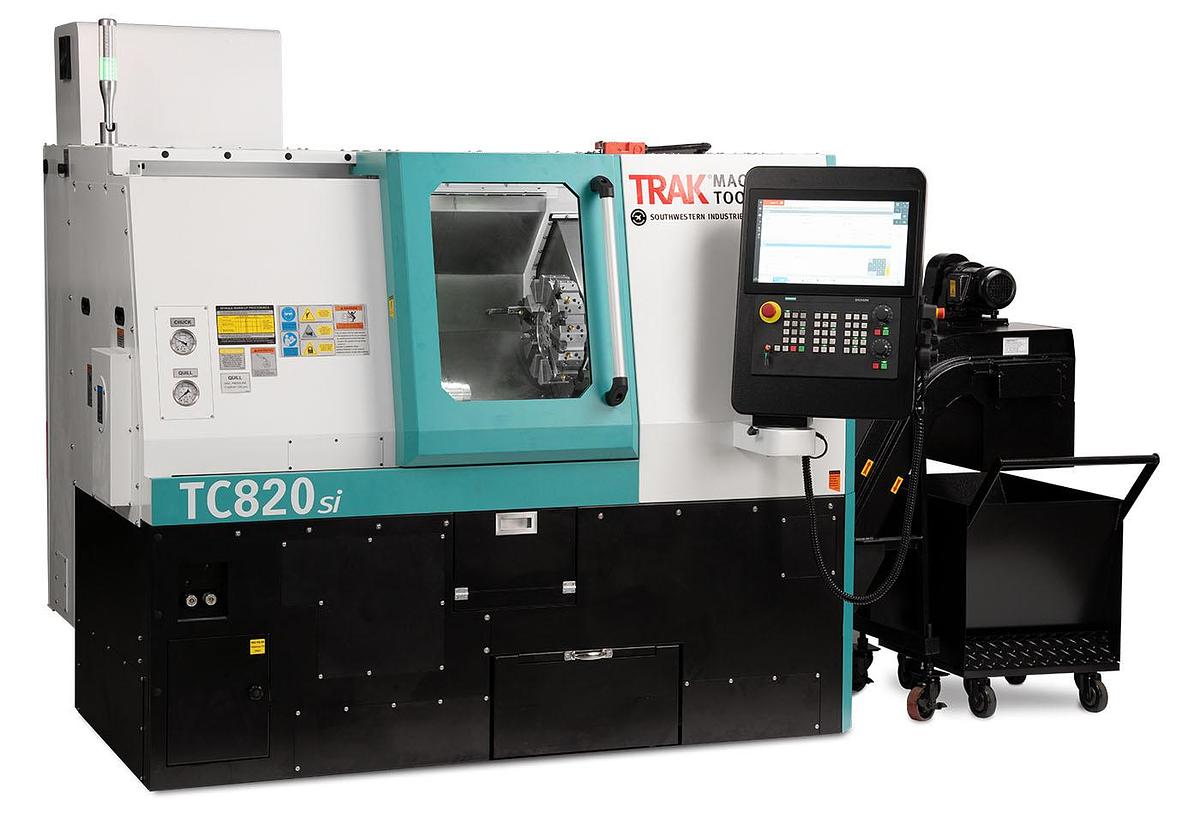

TRAK TC820si 2 Axis Turning Center TC820si
TRAK TC820si 2 Axis Turning Center TC820si
Contact us for price
Location:California
or
Call 712-737-8700
Description
Available options for additional cost:
Bar feeder
Bar puller
Collet chucks
Parts catcher
Oil skimmer
High pressure coolant
Transformer
Chip cart
Tool holder kit
TRAK USB memory storage
Siemens 3D simulation
Siemens CNC memory, 4.6 GB
DXF reader
Handwheel run
Siemens execution from external storage
Siemens MyVirtual machine
Siemens Run During Machining
Siemens ShopTurn
Residual material detection
Access MyMachine OPC UA
Specifications
| Manufacturer | TRAK TC820si 2 Axis Turning Center |
| Model | TC820si |
| Condition | New |
| Stock Number | TC820si |
| Height of centers | 41.3" |
| Maximum swing | 15.75" |
| Swing over carriage cover | 11.81" |
| Maximum turned diameter | 8.66" |
| Maximum turning length | 20" |
| Machine rapid speeds | 787 IPM on Z, 590 IPM on X |
| X axis travel | 6.9" |
| Z axis travel | 20.8" |
| Spindle mount | A2-6 |
| Chuck diameter | 8" |
| Drawtube thread | M74 x 2.0 x 35 mm |
| Bar capacity | 2.56" |
| Spindle bore | 3.00" |
| Number of bearings | 4 |
| Main drive system | Belt driven |
| Spindle speed range | 10-4000 RPM |
| Quill travel | 4.13" |
| Quill diameter | 2.36" |
| Tailstock taper | 4 MT |
| Main motor continuous power | 14.72 HP |
| Main motor peak power | 38 HP |
| Number of station on turret | 12 stations |
| Tool shank dimensions | 0.75" x 0.75" |
| Maximum boring bar diameter | 1.5" |
| Coolant tank capacity | 33 gallons |
| Machine weight | 8,000 LBS |
| Machine dimensions | 120" x 90" x 87" |
