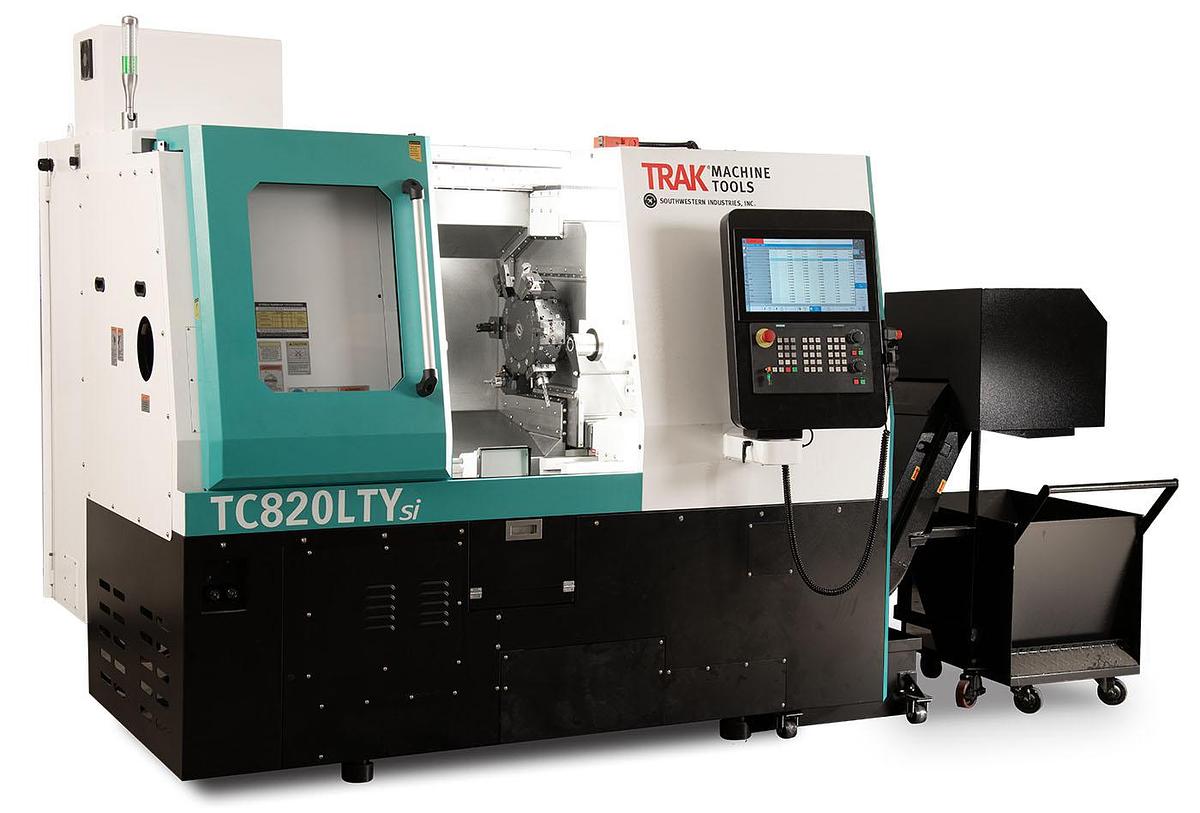

TRAK TC820LTYsi Turning Center w/Siemens Sinumerik One Control TC820LTYsi

TRAK TC820LTYsi Turning Center w/Siemens Sinumerik One Control TC820LTYsi

Contact us for price

Location:California

or
Call 712-737-8700

Description

Available options for additional cost:

Bar feeder

Bar puller

Tooling

Collet chucks

Part catcher

Oil skimmer

High pressure coolant

Transformer

Chip cart

Tool holder kit

TRAK USB memory storage

Siemens 3D simulation

Siemens CNC memory, 4.6 GB

DXF reader

Handwheel run

Siemens Execution from external storage

Siemens MyVirtual machine

Siemens Run During machine

Siemens ShopTurn

Residual material detection

Access MyMachine OPC UA


Specifications

ManufacturerTRAK TC820LTYsi Turning Center w/Siemens Sinumerik One Control
ModelTC820LTYsi
ConditionNew
Stock NumberTC820LTYsi
Height of centers47.3"
Maximum swing15.75"
Maximum turned length19.29"
Maximum turned diameter8.66"
Rapid speeds787 IPM on X, Z and 590 IPM on Y
X axis travel8.11"
Y axis travel2.75"
Z axis travel19.69"
Spindle nose frontA2-6
Swing over carriage cover12.59"
Tool section maximum0.75"
Chuck diameter7.88"
Drawtube threadM74 x 2.0 x 35 mm
Bar capacity2.56"
Spindle bore3"
Spindle front bearing diameter4.33"
Number of bearings4
Drive systemBelt drive
Spindle speed range10-4,000 RPM
Spindle motor brakeYes
Quill travel4.72"
Quill diameter2.95"
Quill taper holeMT4
Motor (peak)38 HP
Motor (continuous)14.75 HP
Number of tools12 live tool stations (BMT45)
Coolant tank capacity50 gallons
Hydraulic oil capacity11 gallons
Machine dimensions128" x 82" x 79"
Machine weight9,700 LBS
