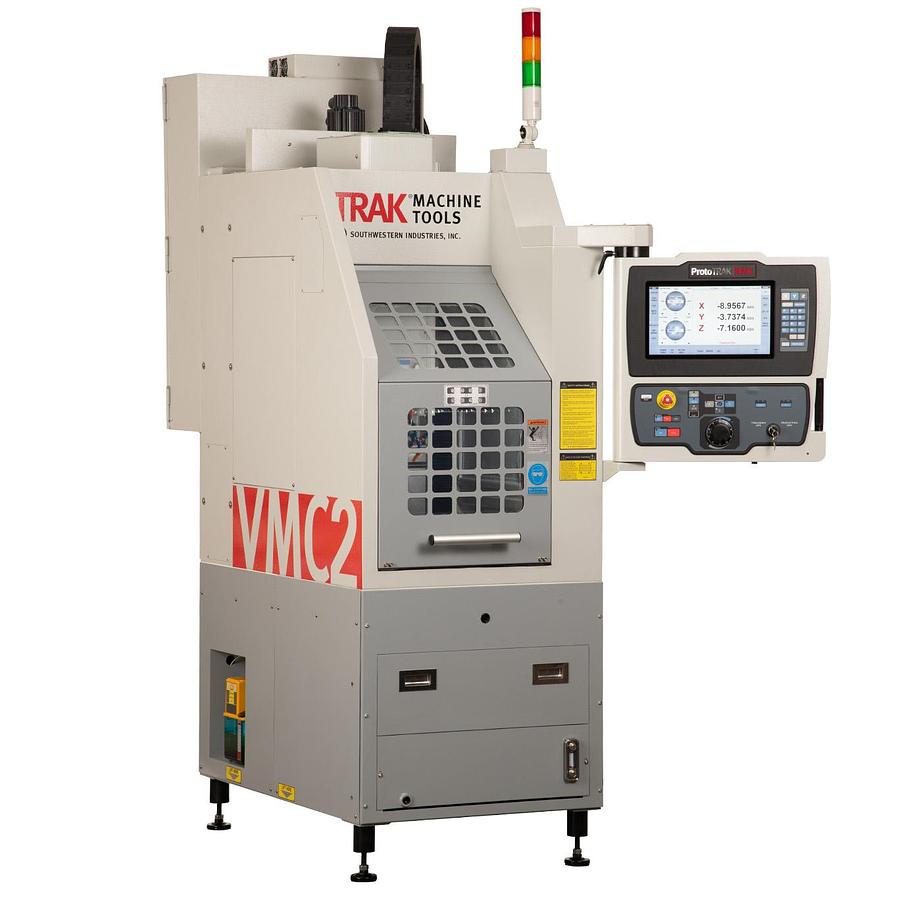

TRAK VMC2 Milling Machine w/RMX Control VMC2
TRAK VMC2 Milling Machine w/RMX Control VMC2
Contact us for price
Location:California
or
Call 712-737-8700
Description
Available options for additional cost:
Retention knobs
Tool cart
Tool presetting gauge
Fixture plate
Vise fixture plate assembly
Vise stop
Tool holders
Ball lock clamping devices
Remote stop/go switch
Ball lock liners
Work holding w/Kurt vises
TRAK USB memory storage
Pallet jack
Tool tray
Auxiliary output
Voltage change (220V to 440V)
Single phase option
Indexer ready kit
Extended warranty
Clear off
CAM file out
Offline programming
MTConnect
Parasolid file converter
DXF converter
Specifications
| Manufacturer | TRAK VMC2 Milling Machine w/RMX Control |
| Model | VMC2 |
| Condition | New |
| Stock Number | VMC2 |
| Table size | 18" x 15" |
| T-slots (number x width x pitch) | 4 x .629" x 2.48" |
| Travel (X,Y,Z axis) w/soft limits | 14" x 12" x 17" |
| Rapid traverse X,Y,Z | 400 IPM in Toolroom Ops, 600 IPM in Production Ops |
| Spindle taper | 30 Taper |
| Spindle speed range (production ops) | 50-10,000 RPM |
| Spindle speed range (toolroom ops) | 50-5,000 RPM |
| Spindle nose diameter | 2.2" |
| Tool holder type | BT30 |
| ATC tool capacity | 8 |
| Maximum tool diameter | 2" |
| Spindle motor (peak) | 4.5 HP |
| Spindle motor (continuous) | 3 HP |
| Table maximum load | 500 LBS |
| Table height | 34" |
| Ball lock hold down force | 2,250 LBS @ 35 in./lbs. of torque |
| Maximum distance from spindle nose table surface | 20.25" |
| Minimum distance from spindle nose table surface | 2.75" |
| Maximum swing clearance from spindle center to column | 14" |
| Pressure | 90 PSI |
| CFM | 2.5 @ 90 PSI |
| SCFM | 18 |
| Coolant tank capacity | 15 gallons |
| Machine dimensions | 54.47" x 68.15" x 101.4" |
| Machine weight | 3,175 LBS |
