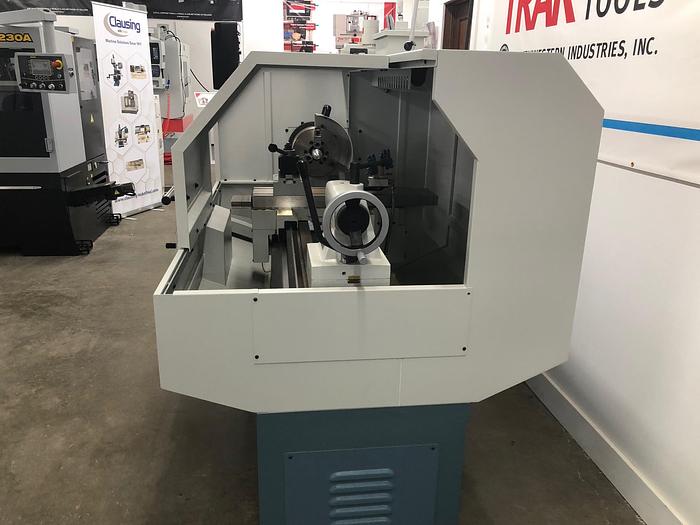

#10250: NEW SW Ind. TRAK TRL 1845RX Lathe
No longer available
#10250: NEW SW Ind. TRAK TRL 1845RX Lathe
$52,781.96 (USD)
Location:Albert Lea, MN
Description
Advanced features with Verify 10” Pratt Burnard Easy Set Chuck Coolant pump Work lamp TRAKing option Aloris CA precision introductory toolpost set
Specifications
| Manufacturer | Southwestern Industries TRAK |
| Model | TRL 1845RX |
| Condition | New |
| Stock Number | 10250 |
| Height of centers | 9” |
| Distance between centers | 45” |
| Swing over bed | 18.1” |
| Swing over saddle wings | 17” |
| Swing over cross slide | 9.13” |
| Cross slide travel | 10.6” |
| Tool section max | 1” |
| Coolant tank capacity | 13 gallons |
| Width of bed | 13.4” |
| Height of bed | 12.4” |
| Spindle through hole | 2.36” |
| Spindle taper | MT#6 |
| Taper in reduction sleeve | MT#4 |
| Spindle diameter at front bearing | 3.35” |
| Number of bearings | 2 |
| Spindle speed range | 80-850, 250-2500 RPM |
| Tailstock quill travel | 6” |
| Quill diameter | 2.56” |
| Quill taper hole | MT#4 |
| Spindle motor | 10 HP |
| Power requirement, control | 110V, 1 PH, 10 A |
| Power requirements, machine | 220V, 3 PH, 60 Hz |
| Maximum rapid feed x | 100 |
| Maximum rapid feed z | 250 |
| Coolant pump motor | 1/8 HP |
| Approximate overall dimensions | 94” x 52” x 73” |
| Approximate weight | 3,800 LBS |
