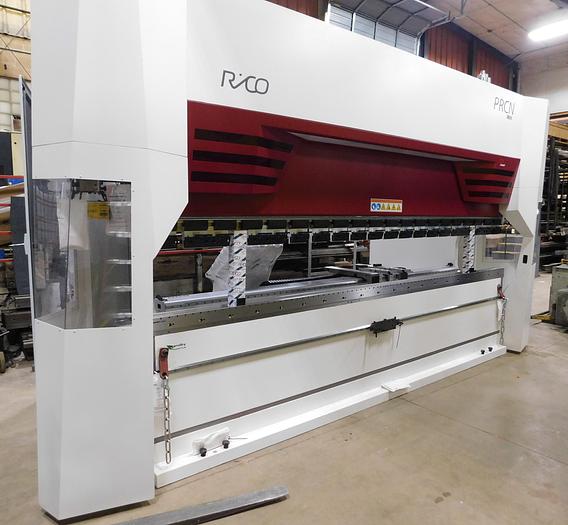

#10331:  NEW Rico 13.4' x 220 Ton Hydraulic CNC Press Brake

#10331:  NEW Rico 13.4' x 220 Ton Hydraulic CNC Press Brake

$225,000 (USD)

Orange City, IA

orCall 712-737-8700

Description

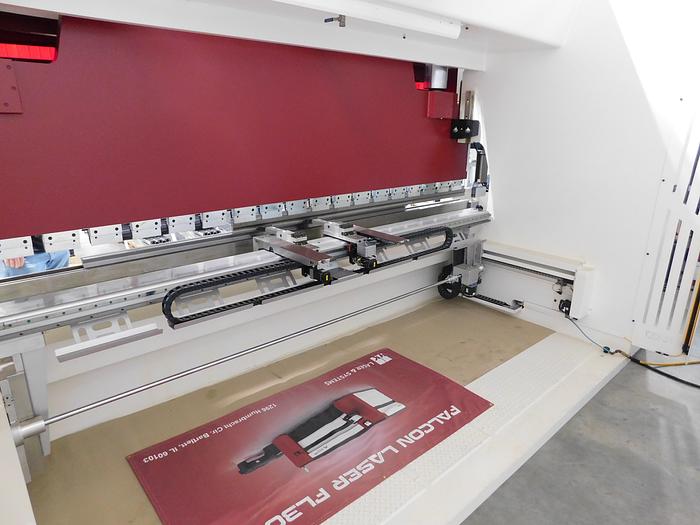

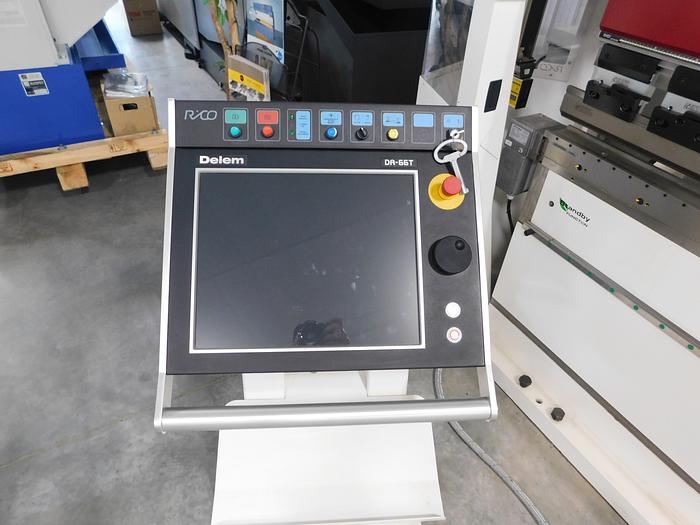

Delem 66T control                               Rico LED bar Offline software                                   Front sheet supports Z1/Z2 programmable fingers             S boost R axis programmable                          Oil cooler CNC crowning                                       1 set of tooling American/European tool holder        Fiessler safety guarding

Specifications

ModelPRCN40200
ConditionNew
Serial Number2799
Stock Number10331
Max tonnage220 ton
Max bending length13.4’
Distance between housings141.7”
Throat depth15.7”
Max stroke11.8”
Max open height21.2”
Approach speed472 IPM
Bending speed40 IPM
Return speed472 IPM
Max b6 strokeX-29.5”, R-7.81”, Z1/Z2-0-191”
B6 speedX-1181 IPM, R-401 IPM, Z1/Z2-4724 IPM
Motor20 HP
Overall dimensions200” x 80” x 119”
Weight44,500 LBS
