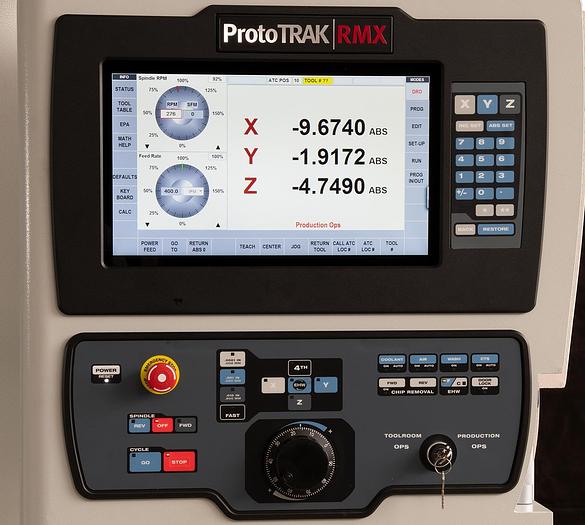

Southwestern Industries TRAK TMC10 Vertical Machining Center with /RMX Control
No longer available
Southwestern Industries TRAK TMC10 Vertical Machining Center with /RMX Control
$73,428 (USD)
Orange City, IA
Description
Auxiliary function
Electronic handwheel
Remote stop/go switch
Retention knobs-Cat 40 tooling (set of 16)
6” Kurt DX6 vise
Converter-parasolid and DXF files
Specifications
Manufacturer | Southwestern Industries TRAK |
Model | TRAK TMC10 Vertical Machining Center with /RMX Control |
Condition | New |
Serial Number | 211EP215 |
Stock Number | 10462 |
Table size | 44.09" x 19.69" |
T-slots | 5 @ .709" x 3.937" |
Travels (X,Y,Z) | 40.75" x 20" x 20" |
Spindle taper | 40 Taper |
Spindle speeds | 50-8,000 RPM |
Spindle nose | 3" diameter |
Tool clamping force | 1,500 LBS |
Tool holder type | CT 40 or BT40 |
Automatic tool changer capacity | 16 tools |
Maximum tool weight | 15 LBS |
Maximum tool diameter | 3.14" |
Carousel speed | 0.8 second station to station |
Tool selection system | Bi-directional/shortest path |
Spindle motor power (peak HP) | 15 HP |
Spindle motor power (continous) | 10 HP |
Power requirements | 208V, 3 PH, 68 Amps |
Power requirements w/optional transformer | 480V, 3 PH, 30 Amps |
Maximum weight of work piece | 1,000 LBS |
Height of table from bottom of bed | 38" |
Minimum spindle nose to table distance | 3.5" |
Maximum spindle nose to table distance | 23.5" |
Distance of tool carousel to table top | 17.5" |
Throat depth | 18.25" |
Dimensions | 174.5" x 152" x 106.5" |
Footprint | 111" x 135" |
Weight | 10,250 LBS |
Rapid traverse | 400/1,000 IPM |
Coolant tank capacity | 56 gallons |
Coolant pump and wash power | 750 watts |
Air pressure | 90 PSI-2.5 CFM or 18 @ 90 PSI SCFM |
Air quality | Air dried/water separator |
Lubrication pump capacity | 2 liters |
