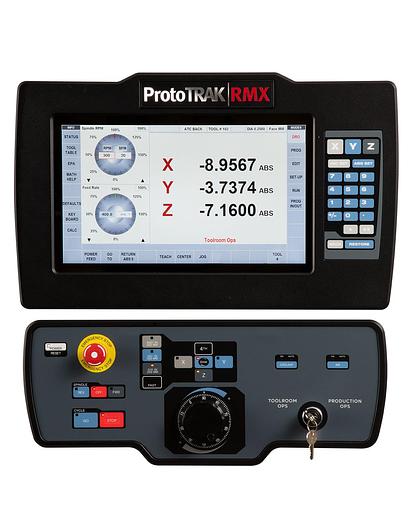

Southwestern Industries TRAK VMC2 Milling Machine with RMX Control VMC2
Sold
Southwestern Industries TRAK VMC2 Milling Machine with RMX Control VMC2
$44,246 (USD)
Location:Orange City, IA
Description
Equipped with:
Ball lock clamping devise – set of 4
Vise fixture plate
Kit retention knob
Tool holders BT30, 8 pieces of assorted sizes
Vise
Converter-parasolid and DXF files
MT connect protocol software
Specifications
| Manufacturer | Southwestern Industries TRAK VMC2 Milling Machine with RMX Control |
| Model | VMC2 |
| Condition | New |
| Serial Number | 204EQ102 |
| Stock Number | 10464 |
| Table size | 18" x 15" |
| Number of t-slots and pitch | 4 @ 63 mm |
| T-slot width | 0.630" |
| Table maximum load | 500 LBS |
| Ball lock hold down force | 2,250 LBS @ 35 in/lbs of torque |
| X axis travel | 14" |
| Y axis travel | 18" |
| Z axis travel | 17" |
| Maximum distance from spindle nose table surface | 20.25" |
| Minimum distance from spindle nose table surface | 2.75" |
| Maximum swing clearance from spindle cetner to column | 14" |
| Maximum rapid speed X,Y,Z axis | 600 production OPS/400 toolroom OPS |
| Maximum RPM | 10,000 |
| Tool capacity | 8 |
| CFM | 2.5 @ 90 PSI |
| SCFM | 18 |
