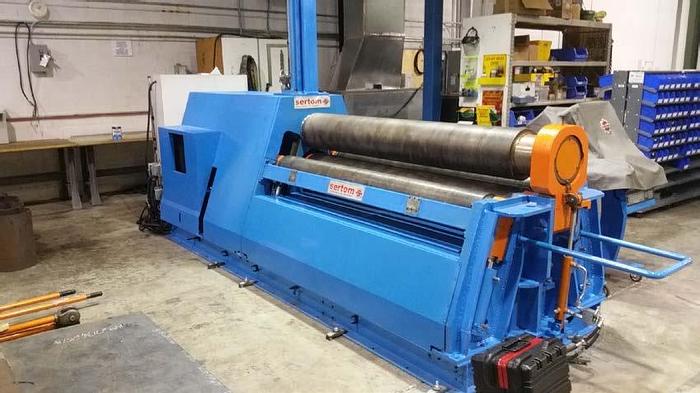

2014 Sertom-RIMI CNC 4 Roll Bending Machine 4RV BULL 20-14
Sold
2014 Sertom-RIMI CNC 4 Roll Bending Machine 4RV BULL 20-14
$85,000 (USD)
Location:Orange City, IA
Description
Equipped with:
Normalized, induction hardened and grounded rolls
Over-head vertical support (capacity 3 ton x 4 meter shall ID)
Hydraulic drop end

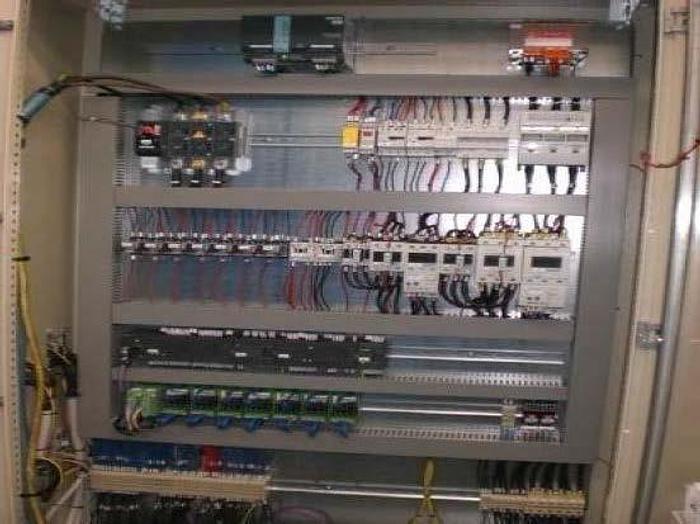

Siemens KTP 1200 PN CNC Control with 12” monitor
Automatic centralized lubrication
Air conditioned cabinets
Specifications
| Manufacturer | Sertom-RIMI CNC 4 Roll Bending Machine |
| Model | 4RV BULL 20-14 |
| Year | 2014 |
| Condition | Used |
| Serial Number | 4RV BULL 20-14 |
| Stock Number | 10198 |
| Rolls table length | 82.67" |
| Top roll diameter | 12.20" |
| Lateral rolls diameter | 8.26" |
| Central roll diameter | 10.63" |
| Max load of top roll | 143 US Tons |
| Rolls rotation speed (range) | 98-196 IPM |
| Lateral rolls positioning speed (range) | 6-39 IPM |
| Total installed power | 25 Kw |
| Voltage | 480V, 60 Hz |
| Dimensions | 177" x 71" x 67" |
| . | Steel plate yield strength 36,000 PSI yield & 58,000 PSI tensil: |
| Pre-bending capacity max working plate width | 78.74" |
| Pre-bending thickness (at 5 times top roll) | 0.670" |
| Rolling capacity max working plate width | 78.74" |
| Rolling capacity rolling thickness (at 5 times top roll) | 0.886" |
| . | Steel plate with yield strength 50,000 PSI yield & 75,000 PSI tensil: |
| Pre-bending capacity max working plate width | 78.74" |
| Pre-bending thickness (at 5 times top roll) | 0.551" |
| Rolling capacity max working plate width | 78.74" |
| Rolling capacity rolling thickness (at 5 times top roll) | 0.748" |
