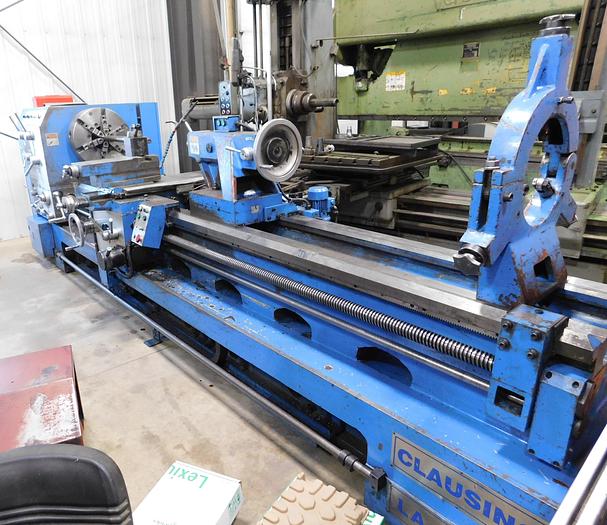

Clausing 29" x 120" Toolroom Lathe LA29120
Sold
Clausing 29" x 120" Toolroom Lathe LA29120
$27,500 (USD)
Location:Orange City, IA
Description
Equipped with:

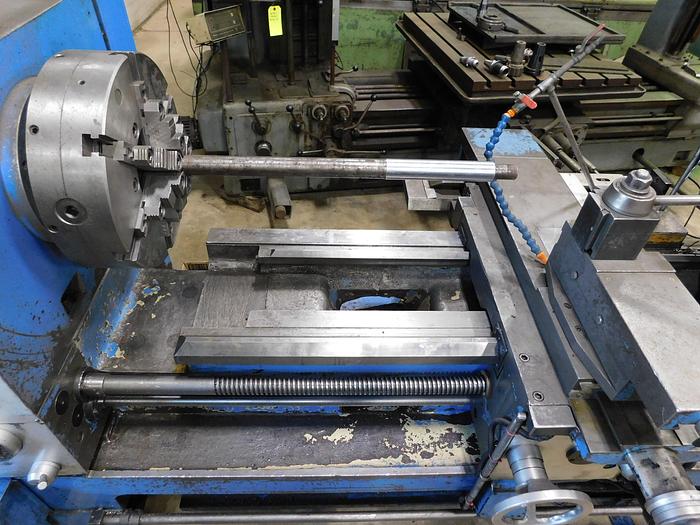

20” 6 jaw chuck

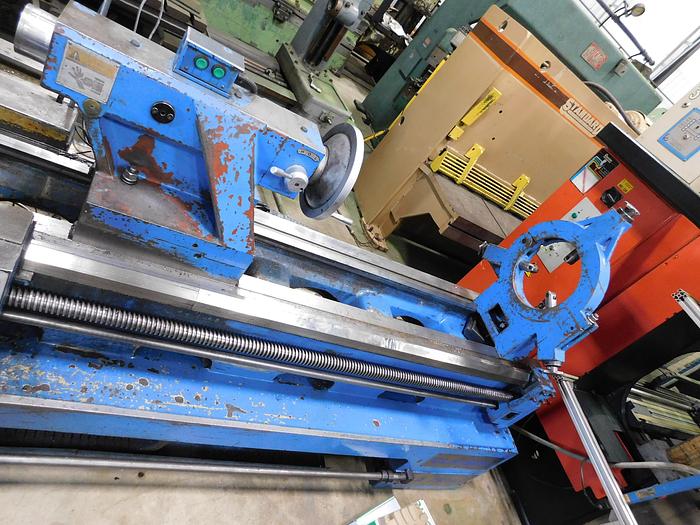

Steady rest

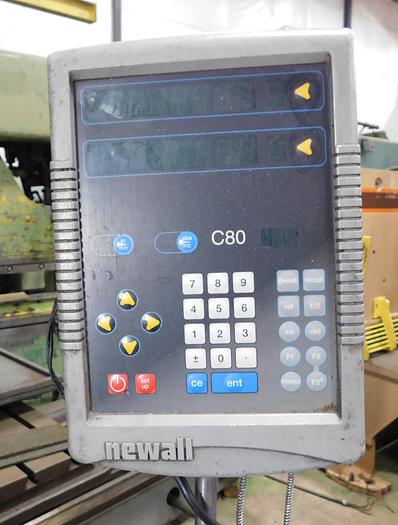

Newall C80 2 axis DRO
Taper attachment
Coolant
Rapid traverse
Specifications
| Manufacturer | Clausing 29" x 120" Toolroom Lathe |
| Model | LA29120 |
| Condition | Used |
| Serial Number | 202906302 |
| Stock Number | 10523 |
| Swing over bed | 29" |
| Swing over cross slide | 19.7" |
| Distance between centers | 120" |
| Weight between centers | 8,800 LBS |
| Maximum weight w/steady rest | 13,860 LBS |
| Steady rest capacity | 1.2"-11.8" |
| Spindle speeds | 13-1800 (18) |
| Spindle bore | 6" |
| Spindle mount | A2-11 |
| Longitudinal feeds | 0.0032-0.096 |
| Inch threads | 30-.25 |
| MM threads | 1-120 |
| Tailstock quill travel | 6" |
| Quill taper | 6 MT |
| Main motor | 20 HP |
| Dimensions | 194" x 60" x 55"H |
| Weight | 14,000 LBS |
