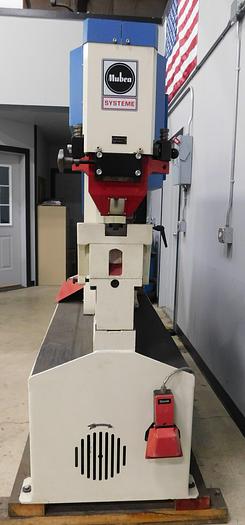

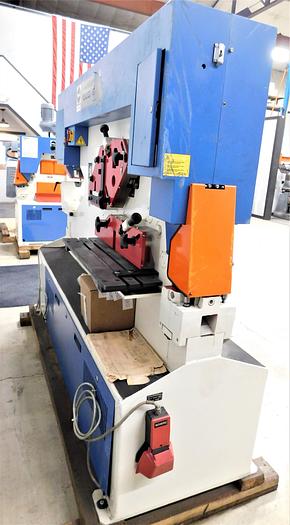

Mubea 110 Ton Hydraulic Ironworker HIW 1000/610
Mubea 110 Ton Hydraulic Ironworker HIW 1000/610
$38,990 (USD)
Orange City, IA
orCall 712-737-8700
Description
Equipped with:
Guided cylinder

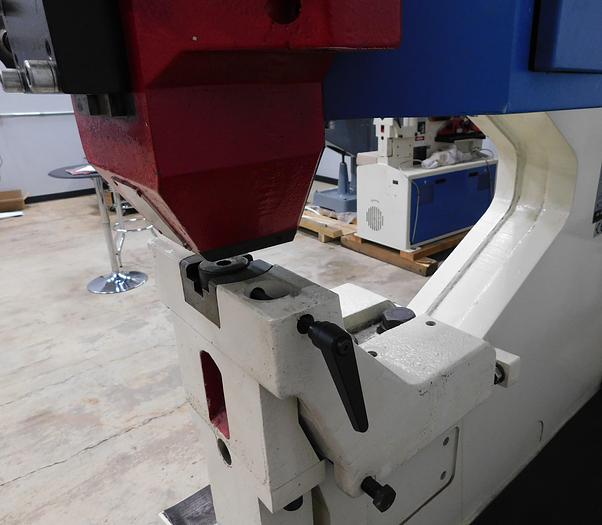

Gooseneck die saddle w/hardened H3 and H2 die saddle insert tools
Gooseneck is adjustable front to rear
Quick change punch holder for H3 punches up to 1 9/16”
H3 to H2 punch adapter sleeve
Adjustable stripper w/safety guarding
Hydraulic center spotter in foot pedal
Adjustable hold downs

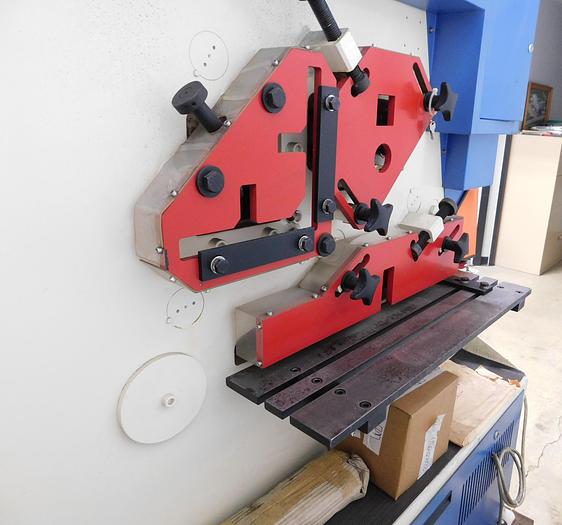

Support table and mitering guide is standard
Rake angle low for precision shearing
Specifications
| Manufacturer | Mubea 110 Ton Hydraulic Ironworker |
| Model | HIW 1000/610 |
| Condition | New |
| Serial Number | HIW 1000/610-211 |
| Stock Number | 10528 |
| Capacity | 110 ton |
| Max capacity | 1 3/8" x 1" or 1 9/16" in 3/4" |
| Max hole size w/special equipment | 6" x 3/16" |
| Infinitely variable stroke length | 0"-2 3/4" |
| Throat depth | 13 3/8" |
| Shearing working height | 44 7/8" |
| Flat bar | 24" x 5/8" or 16" x 3/4" |
| Blade length | 24 3/8" |
| Working height | 36" |
| Round bars | 2" |
| Square bars | 2" |
| Angle cutting at 90 degrees | 6" x 6" x 5/8" |
| Angle cutting at 45 degrees | 3" x 3" x 5/16" |
| Angle cutting working height | 44 3/8" |
| Notching: Material thickness | 1/2" |
| Notching: Width | 2.36" |
| Notching: Depth | Rectangular (standard) |
| Notching: Angle flange | 2 3/4" |
| Notching working height | 36" |
| Main motor | 12 HP |
| Dimensions | 72" x 30" x 90" |
| Weight | 7,100 LBS |
