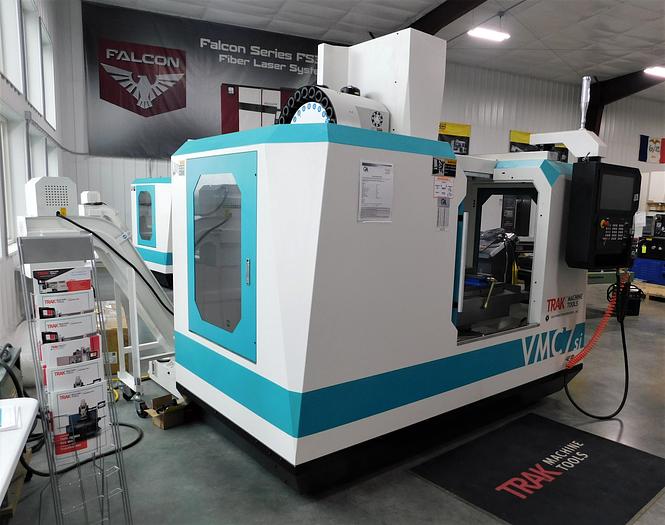

TRAK VMC7si Vertical Machining Center w/Sinumerik One CNC
Sold
TRAK VMC7si Vertical Machining Center w/Sinumerik One CNC
$115,071 (USD)
Location:Orange City, IA
Description
Equipped with:
Probe Kit
Retention knobs
Transformer
Vise kit

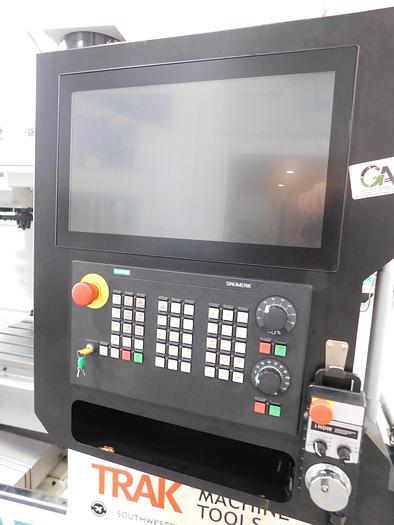

Sinumerik One control w/auto power off, handwheel run option and One Dyanamics-Surfacing
Specifications
| Manufacturer | TRAK VMC7si Vertical Machining Center w/Sinumerik One CNC |
| Model | VMC7si |
| Condition | New |
| Serial Number | 213EY937 |
| Stock Number | 10560 |

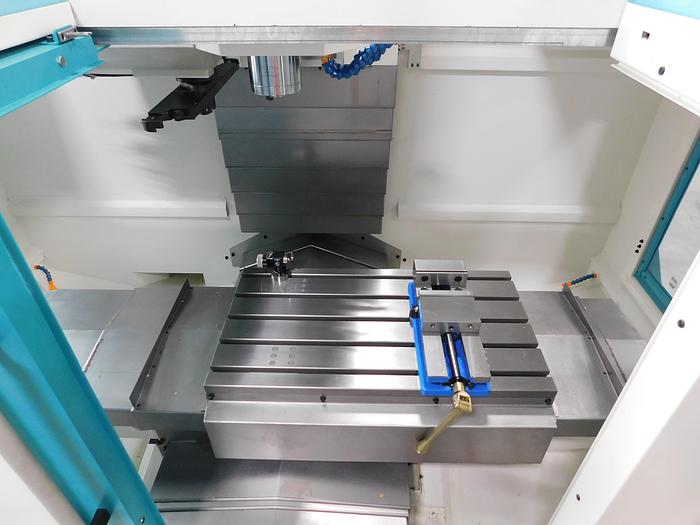

| Table size | 35.43" x 19.69" |
| X travel | 30" |
| Y travel | 20" |
| Z travel | 20" |
| T-slots | 5 |
| Maximum weight of workpiece | 1,230 LBS |
| Table height | 38" |
| Minimum spindle nose to table | 3.5" |
| Maximum spindle nose to table | 23.5" |
| Spindle taper | #40 |
| Spindle speed range | 10-12,000 |
| Spindle motor | 41.5 HP |
| Tool holder | CAT 40 |
| Spindle nose diameter | 3" |
| Spindle diameter | 60mm |
| Number of spindle bearings | 4 |
| Spindle cooler oil capacity | 1 gallon |
| Dimensions | 144" x 112" x 108" Tall |
| Weight | 8,710 LBS |
