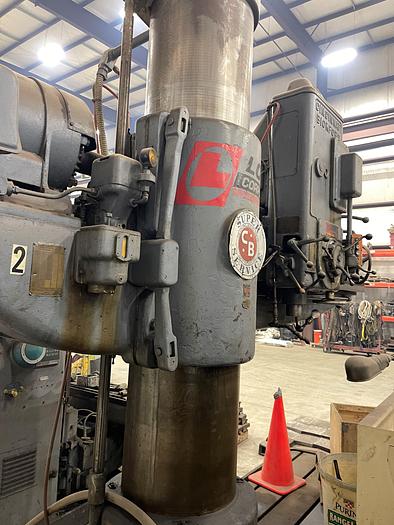

1950 Cincinnati Bickford 8' x 19" Column Radial Drill 6E
![Used 1950 Cincinnati Bickford 8' x 19" Column Radial Drill 6E](https://i.machineryhost.com/b59b71daac29e7cc69b2d4ceeb42a090/large-used-1950-cincinnati-bickford-8-x-19-column-radial-drill-6-e.jpg)
1950 Cincinnati Bickford 8' x 19" Column Radial Drill 6E
$12,500 (USD)
Location:South Dakota
orCall 712-737-8700
Description
AS IS. WHERE IS.
Specifications
Manufacturer | Cincinnati Bickford 8' x 19" Column Radial Drill |
Model | 6E |
Year | 1950 |
Condition | Used |
Serial Number | 6E-719 |
Stock Number | 10572 |
Arm length | 8' |
Column diameter | 19" |
Max height uner arm | 72" |
Spindle speeds | 10-1,250 RPM |
Spindle taper | MT6 |
Spindle travel | 24" |
Drill Capacity | 5/8"-4" diamter |
Spindle diameter | 4" |
Spindle feeds | 0.0240-0.125 IPR |
Spindle tap leads | 8.11 1/2", 14,16,18,20,27 |
Main motor | 20 HP |
Dimensions | 8'W x 12'L x 11'H |
Weight | 34,000 LBS |
