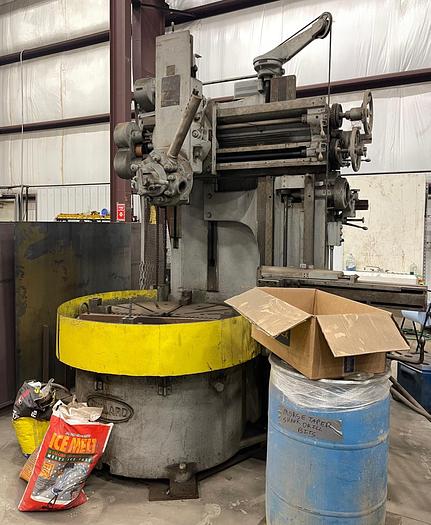

1944 Bullard 42" Spiraltyde VTL
Sold
1944 Bullard 42" Spiraltyde VTL
$15,500 (USD)
Location:South Dakota
Description
Equipped with:
Rapid traverse
Auto lube
As is. Where is.
Specifications
| Manufacturer | Bullard 42" Spiraltyde VTL |
| Year | 1944 |
| Condition | Used |
| Serial Number | 11536 |
| Stock Number | 10571 |

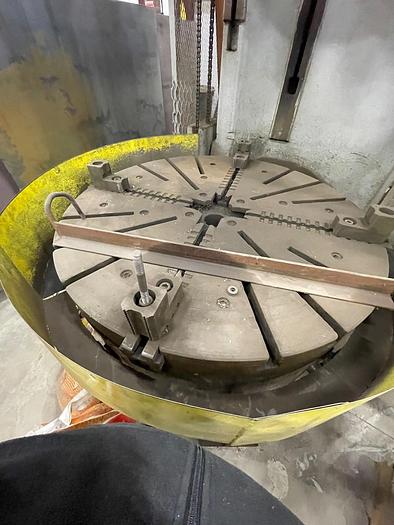

| Diameter of chuck | 42" |
| Number of chuck jaws | 4 |
| Max swing | 54" |
| Max under rail | 37" |
| Max under turret face | 48 1/4" |
| Table speeds | 4.11-150 RPM (20) |
| Feeds | 0.004-0.500 IPR (16) |
| Turret head swivel | 30 Degrees |
| Positions on turret | 5 |
| Vertical travel of turret | 30" |
| Horizontal travel of side head | 21" |
| Vertical travel of side head | 37 1/4" |
| Vertical travel of rail | 25" |
| Motor | 30 HP |
| Dimensions | 85" x 117" x 104" |
| Weight | 30,000 LBS |
