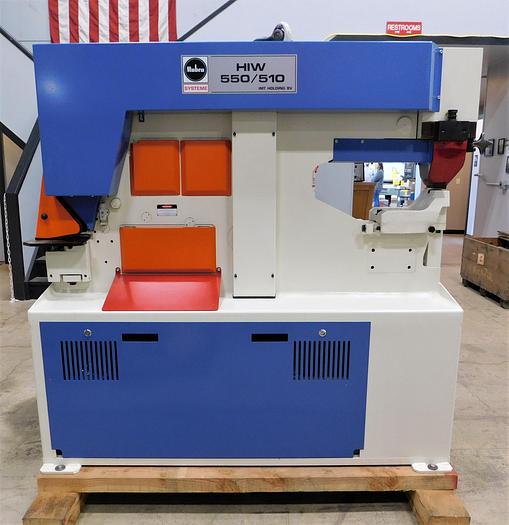

NEW Mubea 62 Ton Hydraulic Steel Ironworker HIW 550/510
Sold
NEW Mubea 62 Ton Hydraulic Steel Ironworker HIW 550/510
$21,000 (USD)
Location:Albert Lea, MN
Description
Equipped With:
Guided cylinder w/adjustment Gooseneck Die Saddle w/ hardened saddle insert tools
Quick change punch holder-H3 up to 1.9/16”
Adjustable slide back striper w/safety guarding
Hydraulic center spotter in foot pedal
Automatic adjustable hold down
Swing away door for easy access to cutting blades
Support tab le and mitering guide is standard
2.5° rake angle for precision shearing
Specifications
| Manufacturer | NEW Mubea 62 Ton Hydraulic Steel Ironworker |
| Model | HIW 550/510 |
| Condition | New |
| Serial Number | 240 |
| Stock Number | 10595 |
| Capacity | 62 tons |
| Maximum capacity | 1 1/4" x 5/8" |
| Maximum hole size w/special equipment | 4" x 3/16" |
| Infinitely variable stroke length | 0"-2 3/8" |
| Working height | 41 3/8" |
| Flat bar | 14" x 1/2" or 9" x 3/4" |
| Blade length | 14 3/16" |
| Working height | 34" |
| Round bars | 1 3/4" |
| Square bars | 1 5/8" |
| Channels and I-beams | 4" |
| Tees 90 degrees | 2 3/4" |
| Angle cutting at 90 degrees | 5" x 5" x 1/2" |
| Angle cutting at 45 degrees | 3" x 3" x 5/16" |
| Working height | 41 3/8" |
| Angle flange | 3" |
| Working height | 34" |
| Motor | 7 1/2 HP |
| Weight | 2,780 LBS |
| Dimensions | 62" x 30" x 54" |
| Notcher material thickness | 3/8" |
| Notcher depth rectangular (standard) | 3 1/2" |
| Notcher width | 1 3/4" |
| Throat depth | 20" |
