1999 Dnyapath 750 CNC Bed Mill 750

1999 Dnyapath 750 CNC Bed Mill 750
$7,500 (USD)
Orange City, IA
orCall 712-737-8700
Description
Equipped With:
Power draw bar
Auto lubrication
Manual pulse generator (mpg)
Head tilts to R 90°
Programming manuals

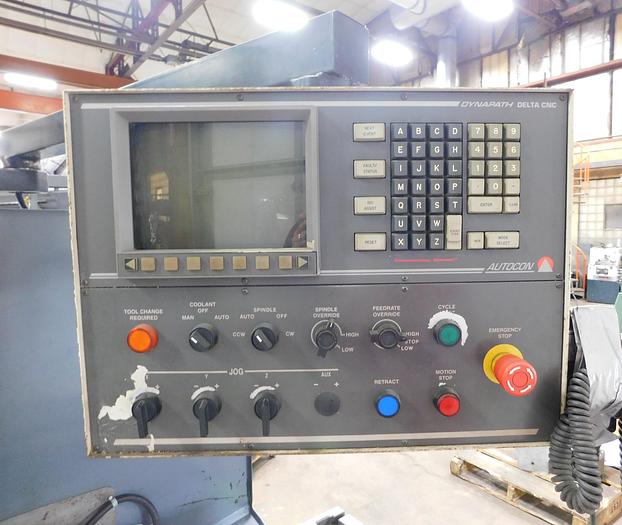

Dynapath Delta CNC conversational graphics
Specifications
Manufacturer | Dnyapath 750 CNC Bed Mill |
Model | 750 |
Year | 1999 |
Condition | Used |
Serial Number | B50-0029 |
Stock Number | 10597 |
Table size | 13" x 58" |
Table travels | 24" x 48" approximate |
Z axis travel | 20" |
Quill travel | 6" |
Quill feeds | 0.15, 0.04, 0.08 |
Distance between spindle to table | 3.5-23.62 |
Max height under spindle | 28" |
Throat depth | 23" |
Maximum weight on table | 990 LBS |
Spindle taper | #40 |
Spindle speeds | 80-3800 RPM |
Main motor | 7.5 HP, 220/440V |
Weight | 5,800 LBS |
