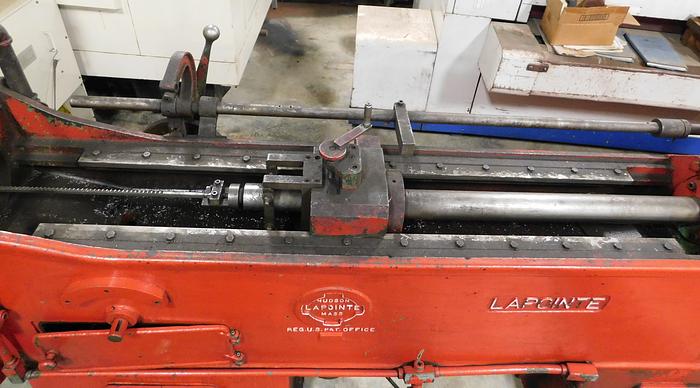

La Pointe Hydraulic Horizontal Broach 3L8

La Pointe Hydraulic Horizontal Broach 3L8

$8,500 (USD)

Orange City, IA

orCall 712-737-8700


Broaches available with machine:

.258, .190, .375, .625, .312, .500

31 tooth spline

6 tooth spline x 1”

Various other spline broaches


ManufacturerLa Pointe Hydraulic Horizontal Broach
Serial Number42393
Stock Number10623
Maximum stroke52"
Maximum pulling capacity18 tons
Maximum cutting speed24 FPM, variable
Maximum return speed120 FPM, variable
Maximum length of broach56"
Diameter of hole in faceplate5"
Faceplate dimensions16.5" x 25"
Distance between bed ways6"
Main motor20 HP, 220/440V
Hydraulic oil capacity25 gallons
Floor space26" x 166"
Machine weight7,500 LBS
