TRAK TMC-7 Vertical Machining Center TMC7

TRAK TMC-7 Vertical Machining Center TMC7

$65,463 (USD)

Orange City, IA

orCall 712-737-8700

Description

Equipped with:

Tooling cart preset tool, plate

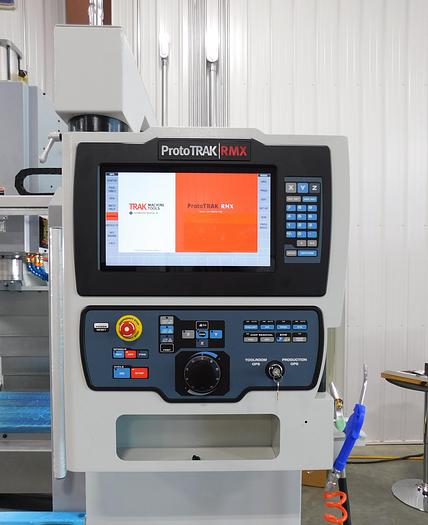

Electronic handwheel option

Remote stop/go switch

Specifications

ManufacturerTRAK TMC-7 Vertical Machining Center
ModelTMC7
ConditionNew
Serial Number222FF781
Stock Number10629

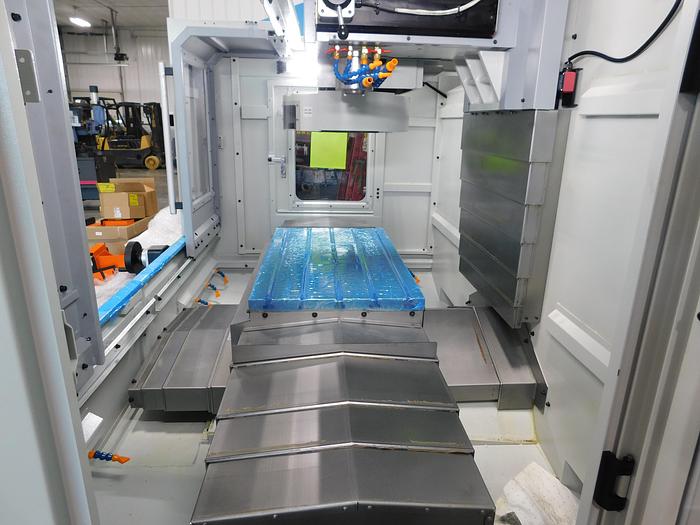

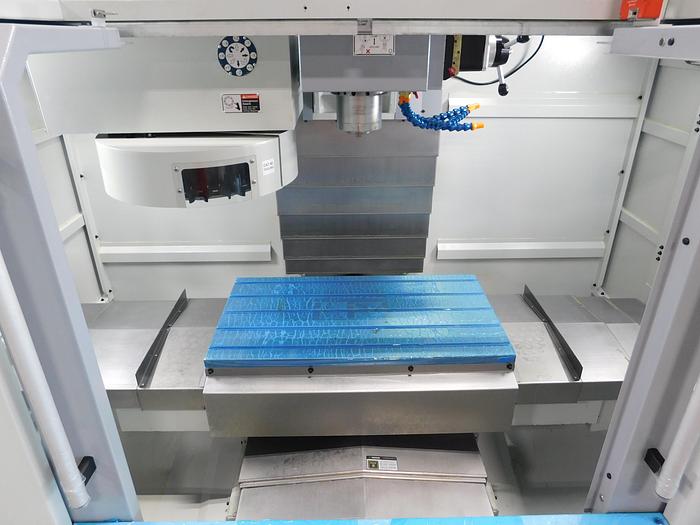

Table size35.43" x 19.69"
T-slots3 (.709" x 3.937")
Travel (X,Y,Z)30" x 20" x 20"
Spindle taper40 Taper
Spindle speed range50-8,000 RPM
Spindle nose diameter3"
Tool clamping force1,500 LBS
Tool holder typeCT 40 or BT40
Automatic tool changer capacity16 tools
Maximum tool weight15 LBS
Maximum tool diameter3.14"
Carousel speed0.8 second station to station
Tool selection systemBi-directional/shortest path
Spindle motor power (peak HP)15 HP
Spindle motor power (continuous)10 HP
Power requirements208V, 3 PH, 83 Amps
Power requirements w/optional transformer460V, 3 PH, 41.5 Amps
Maximum weight of workpiece1,000 LBS
Table height38"
Minimum spindle nose to table distance3.5"
Maximum spindle nose to table distance23.5"
Distance of tool carousel to table top17.5"
Throat depth18.25"
Minimum machine height90"
Maximum machine height106.5"
Machine footprint91.5" x 126"
Machine weight8,360 LBS
Rapid traverse rate400/1,000 IPM
Coolant tank capacity56 gallons
Coolant pump & wash power750 watts
Air pressure CFM or SCFM90 psi-2.5 CRM or 18 SCFM
Air qualityAir dried/water separator
Tapping max capacity2 liters
