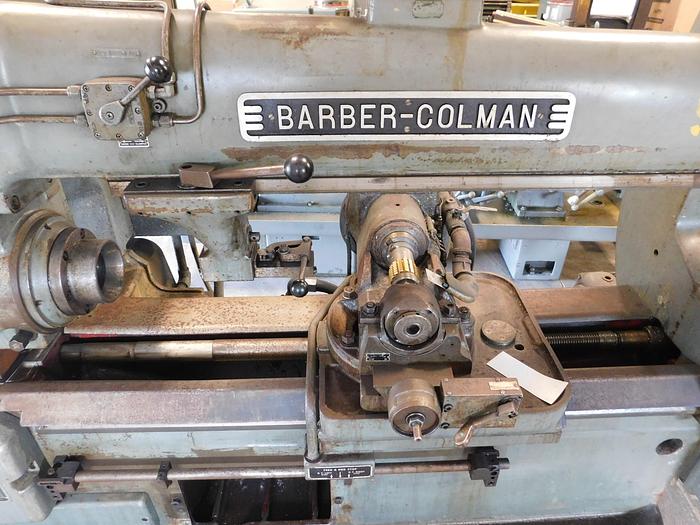

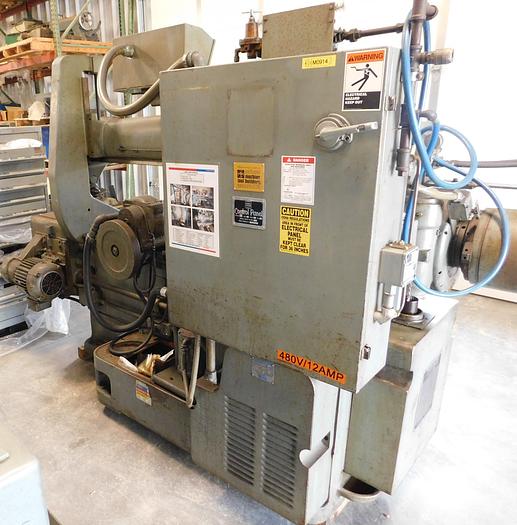

Barber-Coleman Horizontal Gear Hobber 1636
Sold
Barber-Coleman Horizontal Gear Hobber 1636
$14,500 (USD)
Orange City, IA
Description
Equipped with:
Double thread index worm
Hydraulic clamping for collet
Vidmor cabinet full of gears, collets, hobs and centers
**Very clean hob that came from a school.**
Specifications
| Manufacturer | Barber-Coleman Horizontal Gear Hobber |
| Model | 1636 |
| Condition | Used |
| Serial Number | 4189 |
| Stock Number | 10640 |
| Maximum distance of workface to center | 39 1/2" |
| Maximum travel of hob carriage | 36 1/2 |
| Maximum work diameter | 16" |
| Maximum hob slide swivel angle | 45 degrees |
| Hob speeds | 59-246 RPM |
| Hob feeds | 0.0075-0.1125 |
| Spindle bore | 4 1/8" |
| Machine weight | 7,000 LBS |
| Motor | 5 HP, 220/440V |
