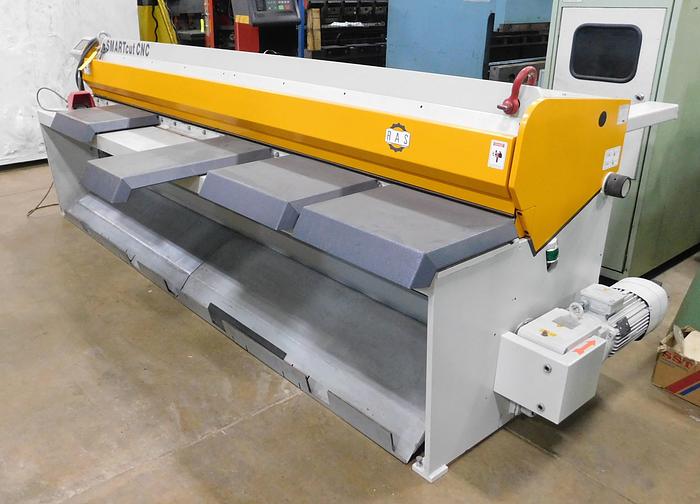

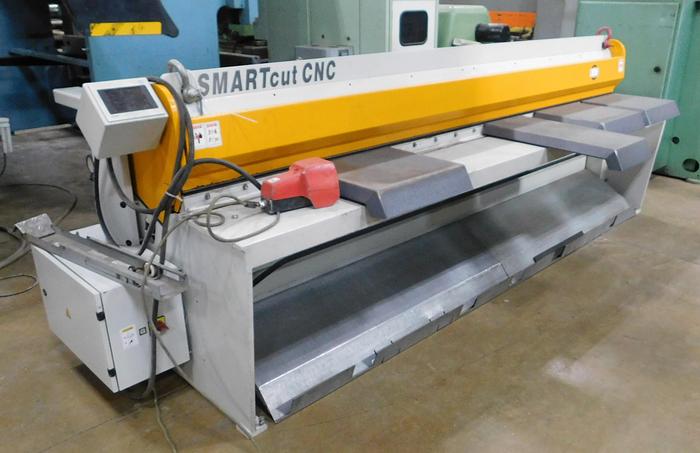

2017 Ras Smartcut CNC Mechanical Shear 5230
Sold
2017 Ras Smartcut CNC Mechanical Shear 5230
$23,950 (USD)
Location:Orange City, IA
Description
Equipped with:
210350 CNC Touchscreen Control
50 programs with 20 lines each
Specifications
| Manufacturer | Ras Smartcut CNC Mechanical Shear |
| Model | 5230 |
| Year | 2017 |
| Condition | Used |
| Serial Number | 9421 |
| Stock Number | 10647 |
| Maximum cutting length | 3100 mm (122.04") |
| Maximum cutting thickness | 2 mm (.078") 14ga |
| Backgauge range | 0.5-750 mm (3/16"-29.53") |
| Sheet supports | Yes |
| Part sorting | Yes |
| Blade clearance adjustment | Yes |
| Strokes per minute | 36 |
| Rake angle | .9 degrees |
| Dimensions | 148" x 91" |
| Weight | 4,300 LBS |
