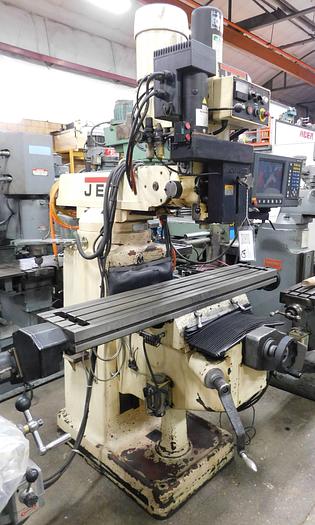

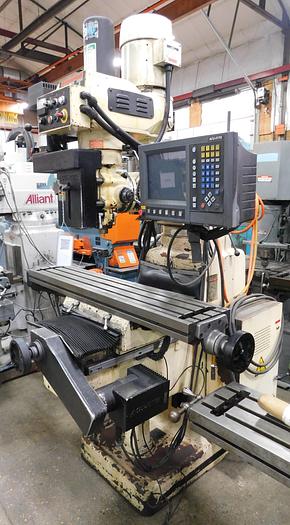

2000 Jet 3 Axis CNC Vertical Milling Machine JTM 1050 EVS

2000 Jet 3 Axis CNC Vertical Milling Machine JTM 1050 EVS

$14,500 (USD)

Location:Orange City, IA

or
Call 712-737-8700

Description

Equipped with:

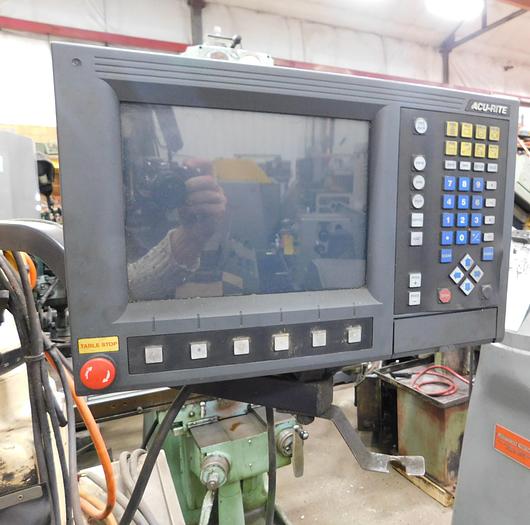

Acurite Millpower 3 axis CNC control

Kurt power draw bar

Manuals and back up disc

Specifications

ManufacturerJet 3 Axis CNC Vertical Milling Machine
ModelJTM 1050 EVS
Year2000
ConditionUsed
Serial Number0060022
Stock Number10651

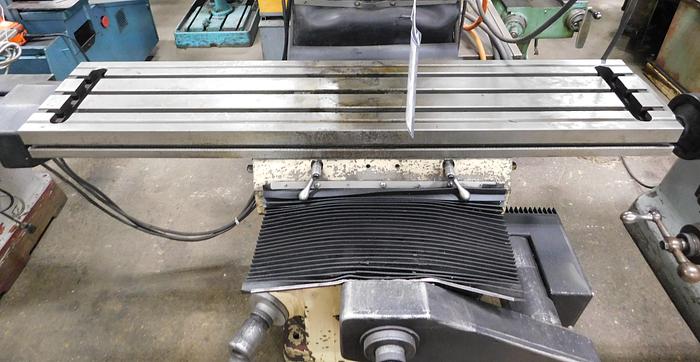

Table size10" x 50"
Table travels16" x 35"

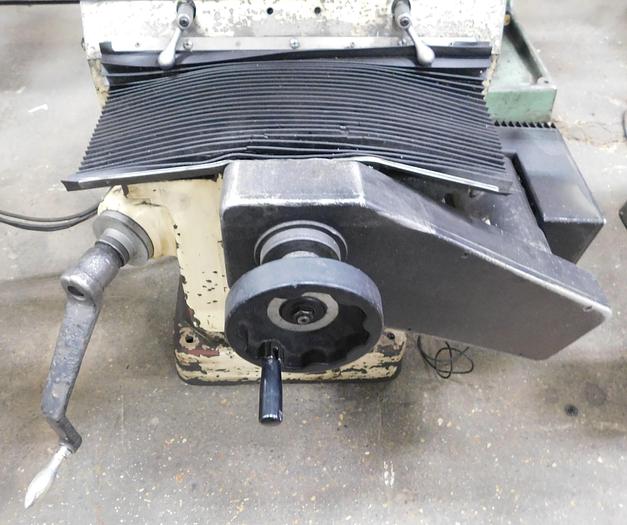

Knee travel16"
Spindle travel5"
Spindle speeds10-3600 RPM
Spindle taperR-8
Maximum table load720 LBS
Main motor3 HP, 220V, 3 PH
Weight3,000 LBS
Dimensions95" x 70" x 88"
