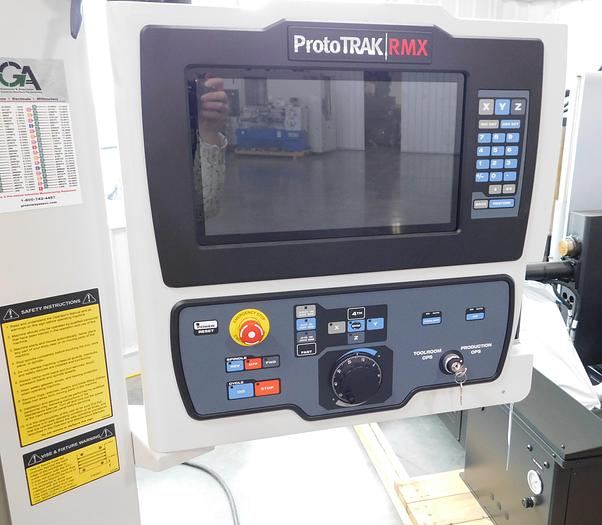

TRAK VMC2 Milling Machine w/RMX Control

TRAK VMC2 Milling Machine w/RMX Control

$46,096 (USD)

Orange City, IA

orCall 712-737-8700

Description

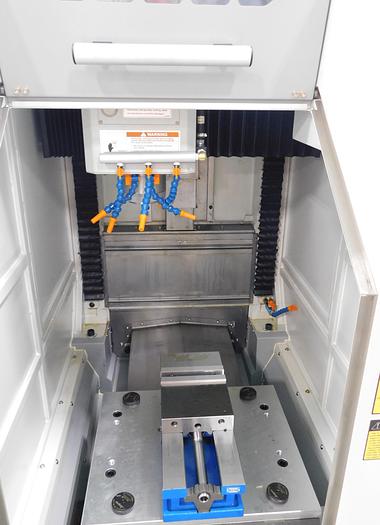

Equipped with:

Ball lock clamping devise – set of 4

Vise fixture plate

Kit retention knob

Tool holders BT30, 8 pieces of assorted sizes

Vise

Specifications

ManufacturerTRAK VMC2 Milling Machine w/RMX Control
ModelVMC2
ConditionNew
Serial Number222EQ689
Stock Number10663
Table size18" x 15"
Number of T slots and pitch4 @ 63 mm
Tee slot width0.630"
Table maximum load500 LBS
Ball lock hold down force2,250 LBS @ 35in/lbs of torque
X axis travel14"
Y axis travel18"
Z axis travel17"
Maximum distance from spindle nose to table surface20.25"
Minimum distance from spindle nose table surface2.75"
Maximum swing clearance from spindle center to column14"
Maximum rapid speed X,Y,Z axis600 production OPS/400 toolroom OPS
Tool holderBT30
Spindle nose diameter2.2"
Maximum RPM10,000
Tool capacity8
Maximum tool diameter2"
Pressure90 PSI
CFM2.5 @ 90 psi
SCFM18
Dimensions54.47" x 68.15" x 101.4"
Weight3,175 LBS
