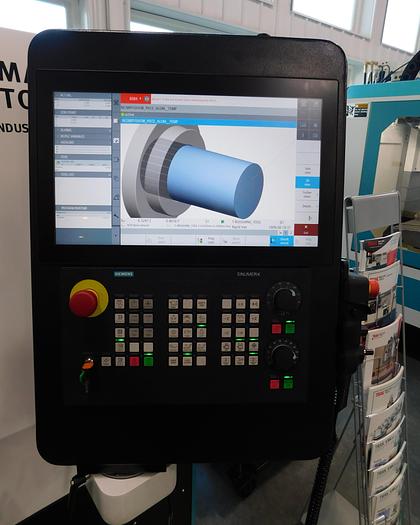

TRAK TC820si Turning Center s/Siemens Sinumerik One CNC
Featured
No longer available
TRAK TC820si Turning Center s/Siemens Sinumerik One CNC
$91,539 (USD)
Location:Albert Lea, MN
Description
Equipped with:
Shopturn
Hardened box ways
Coolant through turret
Manual tailstock w/hydraulic quill
4,000 RPM spindle w/2.56” bar capacity
Tool setting arm and probe
Direct drive on X and Z axes
Auto lubrication
Standard coolant system
Simotics M-1PH8 asynchronous induction
Chip conveyor
High performance Servo motors
Precision ground ball screws
Guarding on all axes
787 IPM federate on Z axis/590 IPM federate on X axis
Absolute position encoders
Fine chip strainer
Large single front door
Specifications
| Manufacturer | TRAK TC820si Turning Center s/Siemens Sinumerik One CNC |
| Model | TC820si |
| Condition | New |
| Serial Number | TC820si |
| Stock Number | 10666 |
| Height of centers | 41.3" |
| Maximum swing | 15.75" |
| Swing over carriage cover | 11.81" |
| Maximum turning length | 20" |
| Maximum turning diameter | 8.66" |
| Tool section max | 0.75" |
| Z axis rapid speeds | 787 IPM |
| X axis rapid speeds | 590 IPM |
| X axis travel | 6.90" |
| Z axis travel | 20.8" |
| Spindle nose front | A2-6 |
| Chuck diameter | 7.88" |
| Drawtube thread | M74 x 2.0 x 35 mm |
| Bar capacity | 2.56" |
| Spindle bore | 3" |
| Spindle front bearing diameter (ID) | 4.33" |
| Number of bearings | 4 |
| Drive system | Belt driven |
| Spindle speed range | 10-4,000 RPM |
| Quill travel | 4.13" |
| Quill diameter | 2.36" |
| Quill taper hole | MT4 |
| Motor peak horsepower (480V) | 38 HP |
| Motor continuous horsepower (480V) | 14.75 HP |
| Maximum torque | 100 ft-lbf@2,000 RPM |
| Number of tools | 12 stations |
| Turning tool shank dimesions | 0.75" x 0.75" |
| Maximum boring bar diameter | 1.5" |
