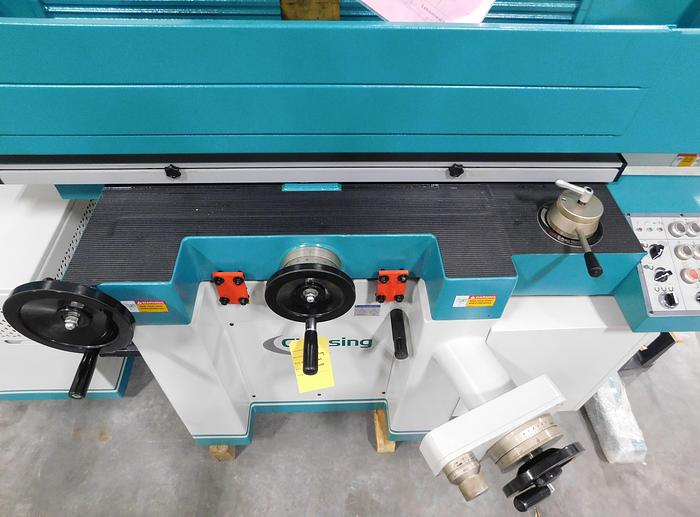

Clausing EQUIPTOP Precision Surface Grinder CSG3A1224
Sold
Clausing EQUIPTOP Precision Surface Grinder CSG3A1224
$41,690 (USD)
Location:Orange City, IA
Description
Equipped with:
Tool box w/tools
Wheel extraction screw and nut
Balancing stand w/arbor
Leveling screws w/blocks
Grinding wheel
Equipped with (cont.)
Work light
Wheel flange
Touch-up paint
Auto lubrication system
Diamond dresser w/diamond
Splash guard
Cross feed ballscrew
Micro down feed

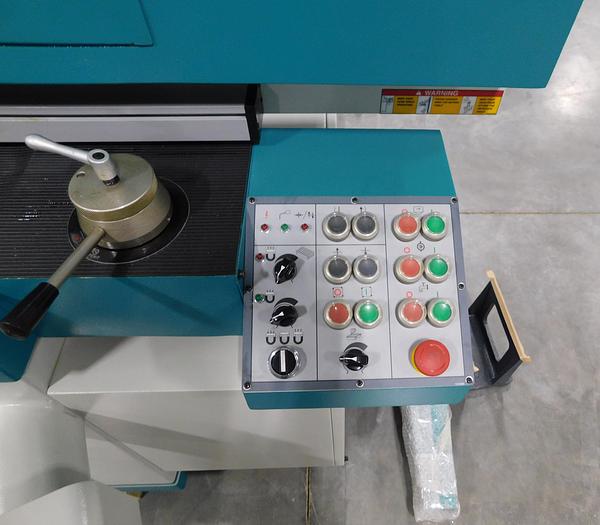

Chuck controller w/De-Mag
Standard voltage 230 or 460 3 Phase
Specifications
| Manufacturer | Clausing EQUIPTOP Precision Surface Grinder |
| Model | CSG3A1224 |
| Condition | New |
| Serial Number | E178A0155 |
| Stock Number | 10668 |
| Table size | 11-13/16" x 23-5/6" |
| Maximum grinding length (longitudinal) | 23-5/8" |
| Maximum grinding width (crosswise) | 11-13/16" |
| Maximum distance from table surface to spindle centerline | 23" |
| Standard magnetic chuck size | 11-13/16" x 23-5/8" |
| Maximum travel (hydraulic) | 25-9/16" |
| Maximum travel (manual) | 28 3/4" |
| Table speed infinitely variable | 196-984 IPM |
| Maximum auto traverse travel | 12.2" |
| Maximum manual traverse travel | 13.39" |
| Hand wheel per revolution | 0.2" |
| Hand wheel per graduation | 0.0001" |
| Spindle speed | 1,750 RPM |
| Power rating | 5 HP |
| Grinding wheel diameter | 12" |
| Grinding wheel width | 1-1/4" |
| Grinding wheel bore | 3" |
| Motor | 2 HP x 6P |
| Floor space | 106-1/2" x 63" x 73" |
| Machine weight | 5,038 LBS |
| Power | 8-1/4 HP |
