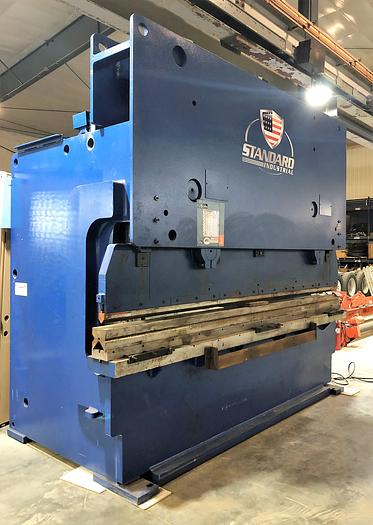

Standard Industrial HydroMechanical Press Brake AB325-12
Sold
Standard Industrial HydroMechanical Press Brake AB325-12
$73,500 (USD)
Location:Orange City, IA
Description
Tonnage control with gauge
Remote palm button stand
Foot control
No pit required, above ground construction

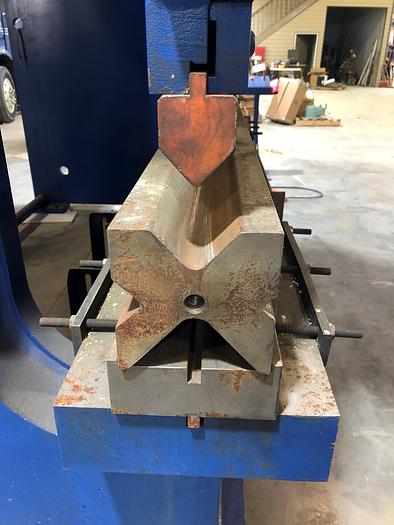

(1) 2 ½” die holder x 12’
(1) 85 top punch 1/8” radius x 12’
(1) 85 top punch ¼” radius x 12’
(1) 5.75 4 way die, 85°1”, 2”, 3” and 5” openings
Specifications
| Manufacturer | Unknown |
| Model | AB325-12 |
| Condition | Used |
| Serial Number | F9162345 |
| Stock Number | 10078 |
| Overall length of bed and ram | 12’ |
| Distance between housings | 10’ 6” |
| Ram stroke | 0-8” |
| Ram open height | 16” |
| Ram speeds approach | 112 IPM |
| Ram speeds forming | 18 IPM |
| Ram speeds return | 89 IPM |
| Throat depth | 10” |
| Main motor | 30 HP |
| Dimensions | 152” x 78” x 124” |
| Weight | 42,000 LBS |
