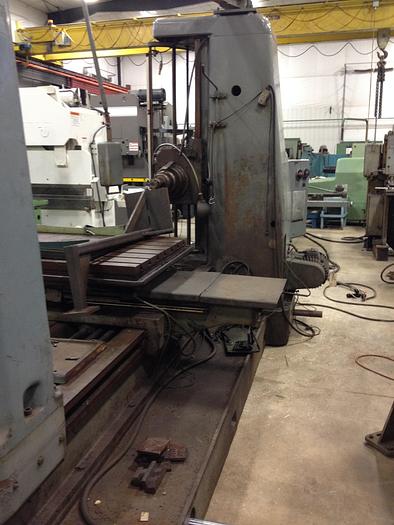

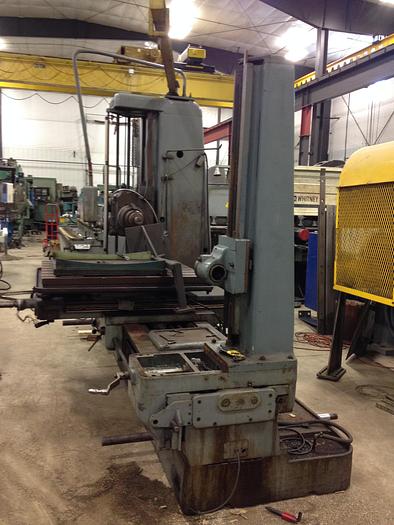

Pfeifer 3" Horizontal Boring Mill
Sold
Pfeifer 3" Horizontal Boring Mill
$10,000 (USD)
Location:Orange City, IA
Description
Mitsutoyo 2axis DRO. Head Vert, and Cross Tailstock T slotted, Rotary table Coolant 3” Diameter Spindle Pendant control with spindle ccw, cw- feed in/out and stop.
Specifications
| Manufacturer | Unknown |
| Condition | Used |
| Stock Number | 9591 |
| Table size | 35 x 44 rotary |
| Table travels | 60” long |
| 32” cross | |
| Head travel | 36” Vert. |
| Spindle travel | 24” |
| Feeds | 0.153 – 53.448 inch/min |
| Main motor | 20/16 kw |
| Dimensions | 16’ x 6’ x 8’ |
| Weight | 20,000 LBS |
