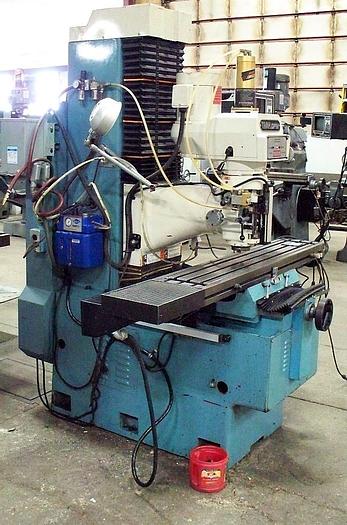

1999 Southwest Industries TRAK DPM3, 3 Axis CNC Bed Mill
Sold
1999 Southwest Industries TRAK DPM3, 3 Axis CNC Bed Mill
$17,000 (USD)
Location:Orange City, IA
Description

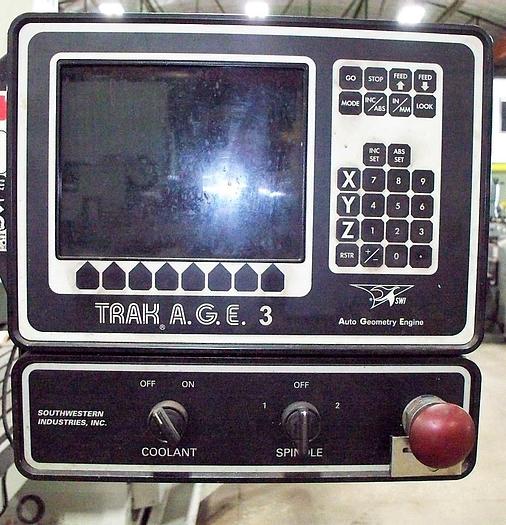

DC Servo motors, ballscrews, circular and linear interpolation, power draw bar, RS232 port, built in floppy drive, Proto TRAK MX3 3 axis CNC control capable of running in 2D mode, 9” CRT, handwheels, Uni-mist coolant and lubrication system, glass scales, work light.
Specifications
| Manufacturer | TRAK |
| Year | 1999 |
| Condition | Used |
| Stock Number | 9891 |
| Table size | 10” x 50” |
| X travel | 31” |
| Y travel | 17” |
| Z travel | 25” |
| Quill diameter | 3 15/16” |
| Spindle taper | #40 NST/NMTBA |
| Spindle center to column face | 17.3” |
| Max quill travel | 5” |
| Quill feed per rev in auto feed | 0.002, 0.004, 0.006 inch/rev |
| Spindle motor | 3 HP |
| Max weight on work table | 1,320 LBS |
| Drilling mild steel | 1.5” |
| Tapping capacity | 1.25” |
| Milling capacity | 3” cubed/min |
| Boring capacity | 4.75” |
| Approximate overall dimensions | 70” x 72” x 89” |
| Approximate weight | 4,500 LBS |
