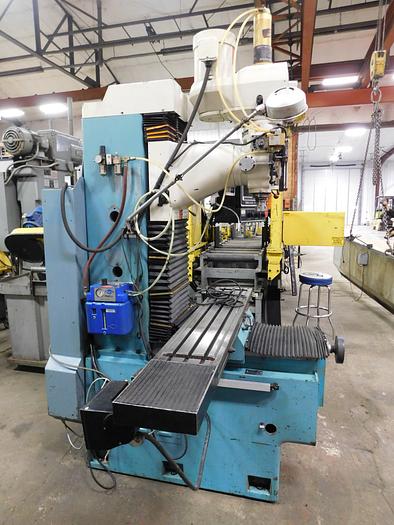

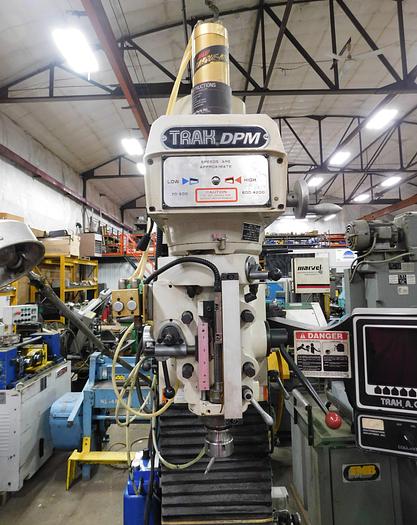

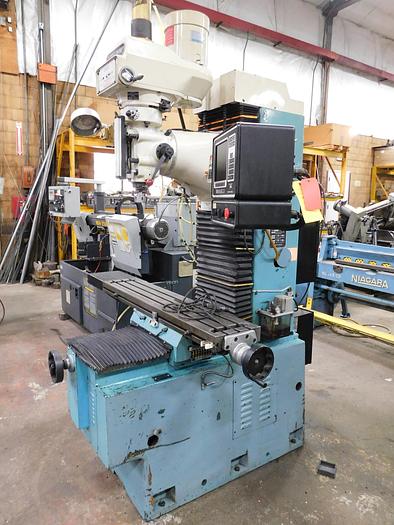

TRAK DPM3 CNC Bed Mill DPM3
Sold
TRAK DPM3 CNC Bed Mill DPM3
$15,950 (USD)
Location:Orange City, IA
Description
Equipped with:

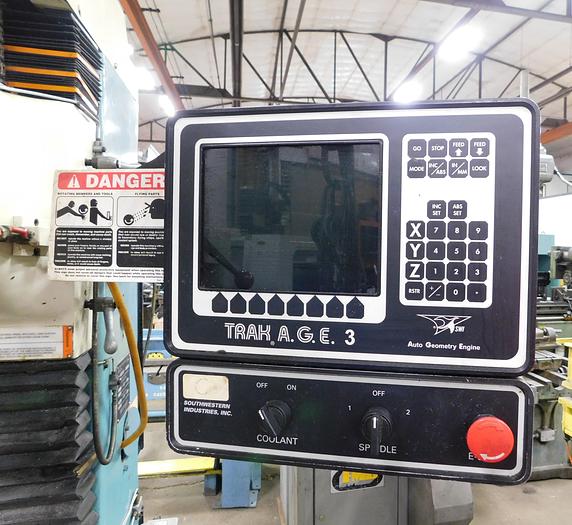

AGE3 CNC conversational control
Mist coolant
Automatic lubrication
Stop/go switch
Power draw bar
Work light
Specifications
| Manufacturer | TRAK DPM3 CNC Bed Mill |
| Model | DPM3 |
| Condition | Used |
| Serial Number | 99-4990 |
| Stock Number | 10731 |

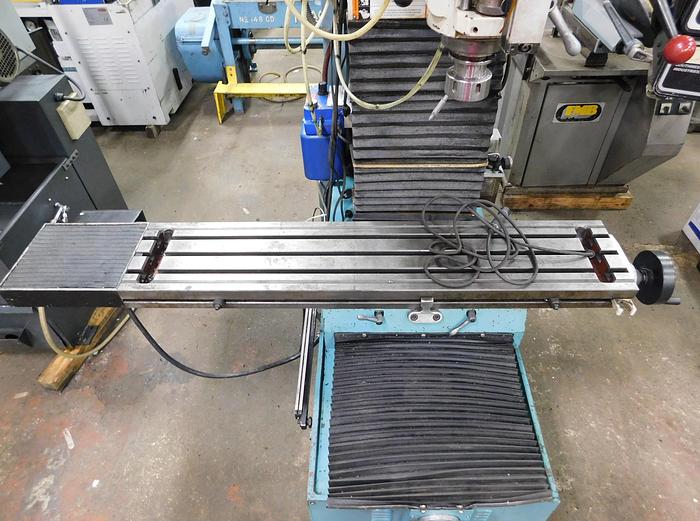

| Table size | 50" x 10" |
| Table travel X | 31.5" |
| Table travel Y | 17" |
| Table travel Z | 25.81" |
| Spindle taper | #40 |
| Spindle speed range | 40-600, 300-5000, variable |
| Head swivel | +/- 90 degrees |
| Quill feeds | 0.0015, 0.003, 0.006 |
| Main motor | 3 HP, 220V, 3 PH |
| Weight of workpiece | 1,320 LBS |
| Machine weight | 4,100 LBS |
| Dimensions | 73" x 76" x 87" |
