Clausing 15" x 50" Toolroom Lathe C1550J
Featured

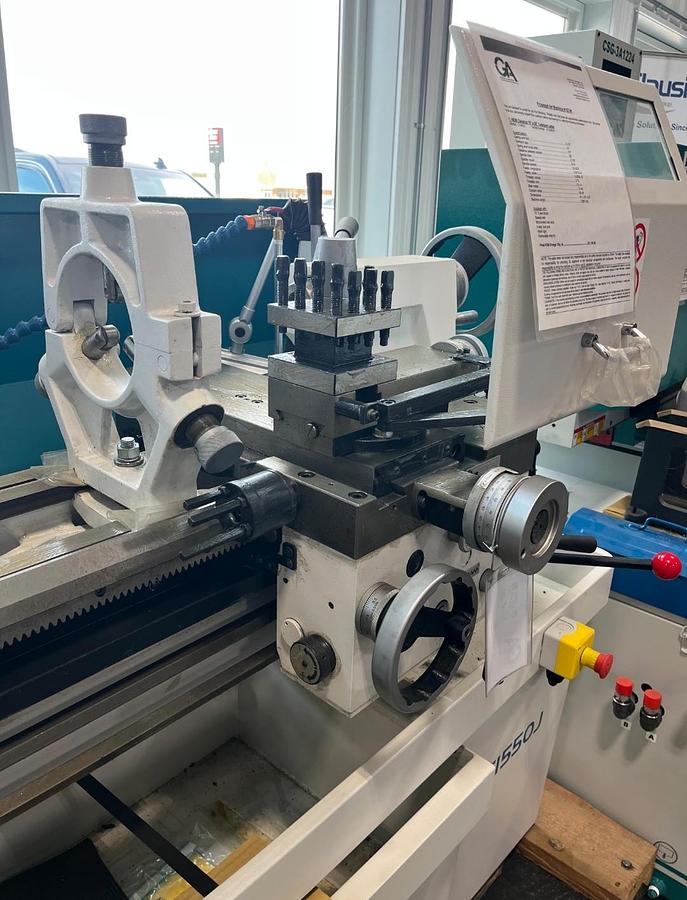

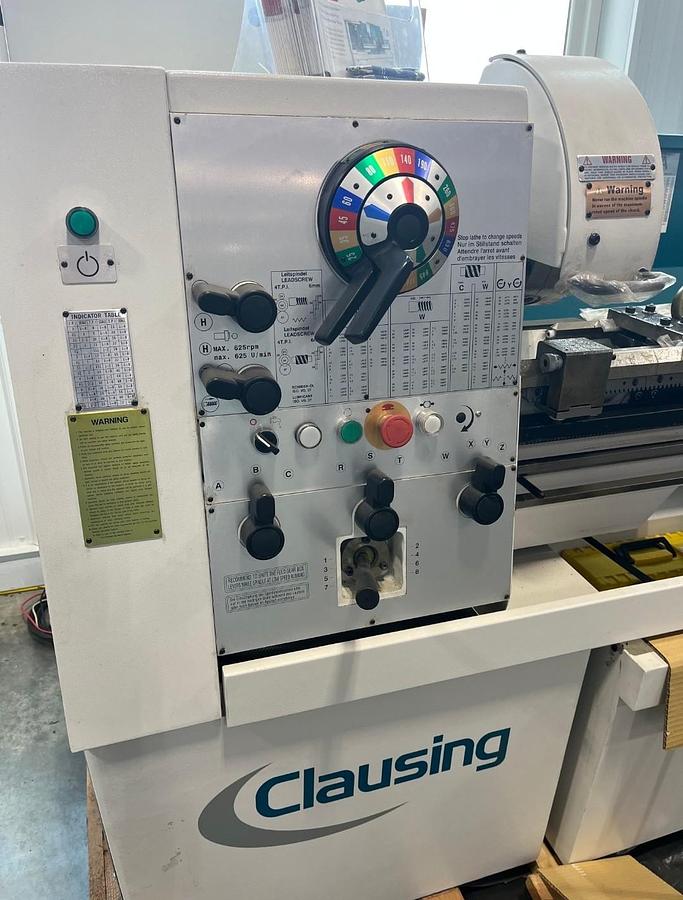

Clausing 15" x 50" Toolroom Lathe C1550J
$33,560 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:
10” 3 jaw chuck
Steady rest
Micrometer bed stop
4 way tool post
Work light
Removable chip try
Specifications
| Manufacturer | Clausing 15" x 50" Toolroom Lathe |
| Model | C1550J |
| Condition | New |
| Serial Number | J11008241 |
| Stock Number | 10744 |
| Swing over bed | 15.25” |
| Swing in gap | 24" |
| Swing over cross slide | 9.5" |
| Distance between centers | 50" |
| Spindle bore | 2.125" |
| Spindle mount | D1-6 |
| Spindle speeds | 25-2000 |
| Feeds, longitudinal | 0.0015-.04 |
| Feeds, cross | 0.0008-.02 |
| Threads, inches | 2-72 |
| Threads, mm | 0.2-14 |
| Main motor | 7.5 HP |
| Coolant motor | 1/8 HP |
| Dimensions | 40" x 50" x 97" |
| Machine weight | 2,860 LBS |
