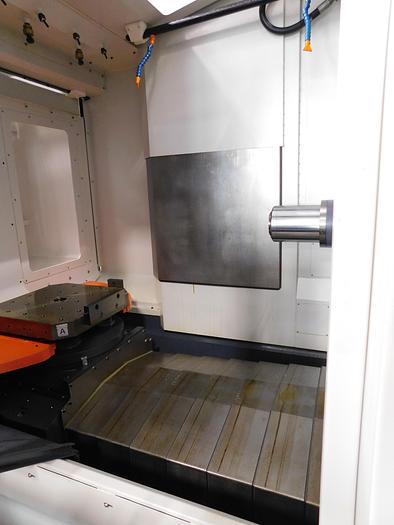

MAG MMH 500 Horizontal Machining Center w/Fanuc CNC Control MMH 500
MAG MMH 500 Horizontal Machining Center w/Fanuc CNC Control MMH 500
$259,500 (USD)
Orange City, IA
orCall 712-737-8700
Description
Equipped with:

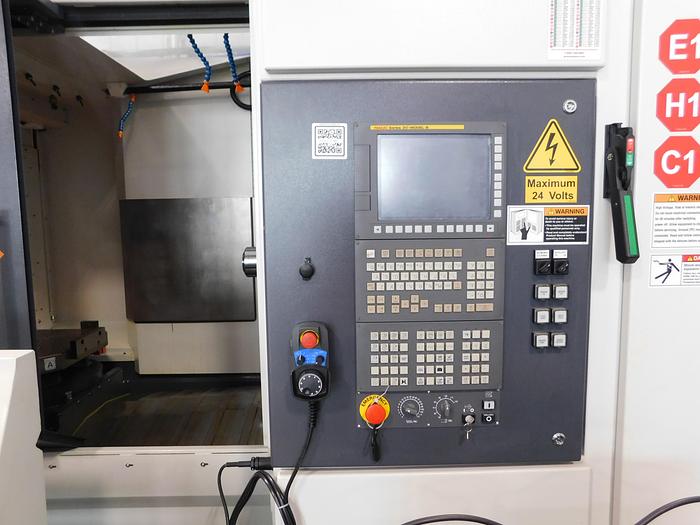

Fanuc 31i-MB CNC control
Manual load pallet at load station
Pallet changer-2 positions
Machine leveling-7 point leveling
Rotary table

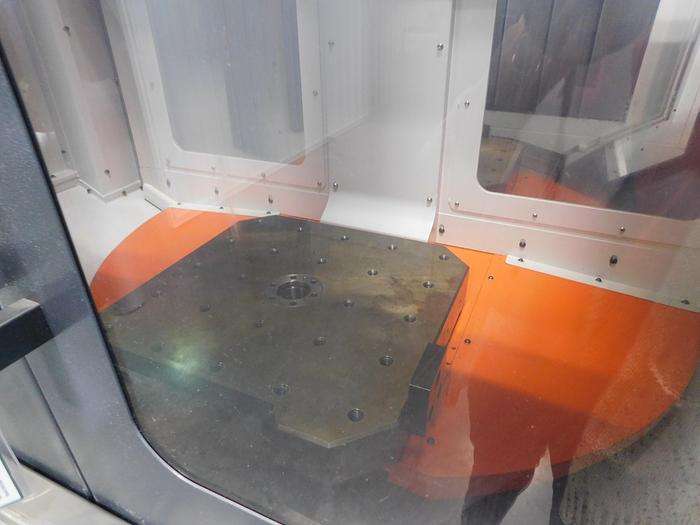

(2) Table pallets-500mm x 500mm w/tapped holes
Hydraulics and pneumatics included
Coolant flushing chip flume (rear discharge)
Dry floor
Chip augers (rear discharge)
Self-contained coolant system/chip conveyor
Operations manuals - electronic format (CD)
Specifications
| Manufacturer | MAG MMH 500 Horizontal Machining Center w/Fanuc CNC Control |
| Model | MMH 500 |
| Condition | New |
| Serial Number | S19050826235 |
| Stock Number | 10768 |
| X axis travel | 30" |
| Y axis travel | 28" |
| Z axis travel | 31.5" |
| Spindle center to table surface | 2"-30" |
| Spindle nose to table center | 3.9"-35.4" |
| Table surface to floor | 41.3" |
| Linear axis speed | 2,362 IPM |
| Linear axis acceleration | 19.7 IPS2 |
| Linear accuracy (ISO-230-2) | 0.4*10-3" |
| Linear repeatability (ISO-230-2) | 0.2*10-3" |
| Linear accuracy (JIS) | +/-0.08*10-3" |
| Linear repeatability (JIS) | +/-0.06*10-3" |
| Pallet size | 19.7" x 19.7" |
| Max loading mass | 1,323 LBS |
| Max workpiece height | 39.4" |
| Max workpiece diameter | 27.6" |
| Min indexing degree | 0.001 degree |
| Tool taper | CAT40/HSK63 |
| Max speed | 12k/15k |
| Power (continuous) | 20.1 HP |
| Torque (continuous) | 88.5 FT-LBS |
| Max power (15 min) | 29.5 HP |
| Max torque (15 min) | 111 FT-LBS |

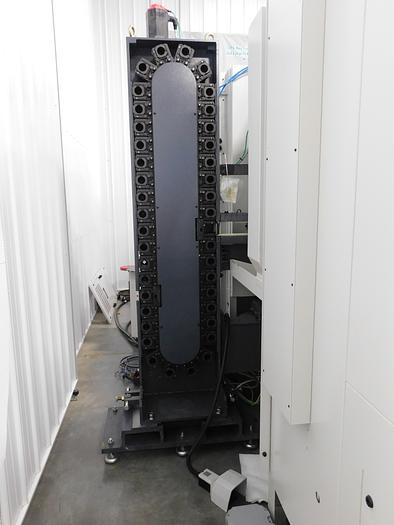

| Number of tools | 40/60 |
| Max tool mass | 26.5 LBS |
| Max tool diameter | 3.7" |
| Max tool diameter (adj pockets empty) | 7.5" |
| Max tool length | 21.7" |
| Tool to tool time | 1.5 sec |
| Tool change time | 2.4 sec |
| Chip to chip time | 4.3 sec |
| Dimensions | 203" x 117" x 110" |
| Machine weight | 37,479 LBS |
| Machine power usage | 60 KVA |
| Machine air usage | 85-114 psi |
