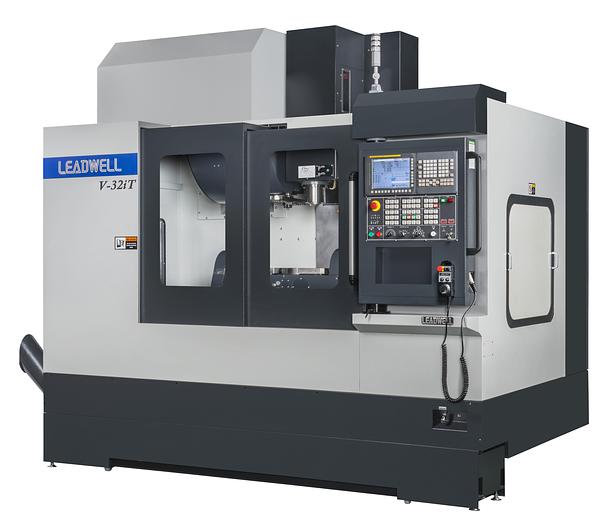

LEADWELL 5 Axis Vertical Machining Center (4+1) V-32iT
LEADWELL 5 Axis Vertical Machining Center (4+1) V-32iT
Contact us for price
Hampshire, IL
orCall 712-737-8700
Description
Equipped with:
Oi-MF PLUS control
Full enclosed splash guard
Heat exchanger
Auto counter for workpiece
Surrounding coolant system
Spindle oi chiller
Spindle air purge
Air gun
Coolant gun
Pallet packing
Chip conveyor
Top cover
3 piece T-slot table set
Royal 12000 RPM ceramic belt driven spindle/V type/CTS preparation
G6000 tool release cylinder (w/out accumulator)
40 tools ATC
SMC air filter
Regulator
Lubricator
Specifications
| Manufacturer | LEADWELL 5 Axis Vertical Machining Center (4+1) |
| Model | V-32iT |
| Condition | New |
| Serial Number | L2TBB0062 |
| X axis travel | 700 mm/27.56" |
| Y axis travel | 520 mm/20.47" |
| Z axis travel | 447 mm/17.60" |
| Table size | 220 mm/8.66" |
| Permissible mass of workpiece | 150 (0-45 degrees)/85 (45-90 degrees) |
| Spindle speeds | 12,000 RPM |
| Maximum spindle torque | 95.5 Nm (30 min) |
| Feed rate | 48/48/36 m/min |
| Tool storage capacity | 24 |
| Maximum tool length | 250 mm/9.84" |
| Spindle motor | 11/11.5 KW |
| X/Y/Z axis feed motor | 4/4/4 KW |
| Power supply | 30 KVA |
| Dimensions | 122.05" x 135.19" x 111.02" |
| Machine weight | 6,500 kg/14,330 LBS |
