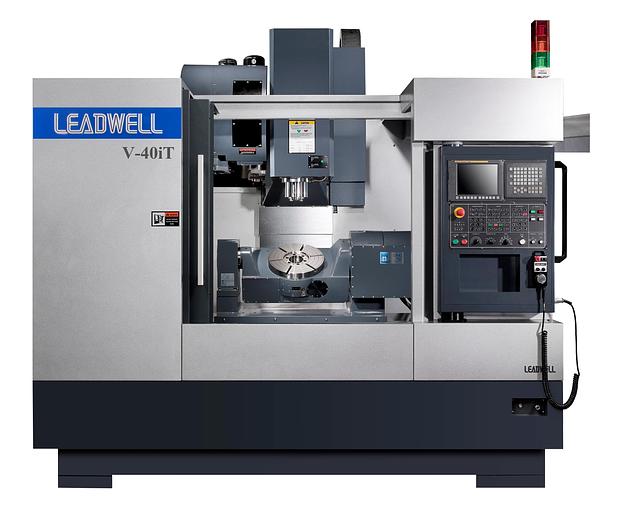

LEADWELL 5 Axis Vertical Machining Center V-40iT
No longer available
LEADWELL 5 Axis Vertical Machining Center V-40iT
Location:Hampshire, IL
Description
Equipped with:
Fanuc 0i-MF PLUS control
Full enclosed splash guard
Heat exchanger
Auto counter for workpiece
Spindle oil chiller
Spindle air purge
Spindle coolant jet
Air gun
Coolant gun
Pallet packing
Scraper type chip conveyor plus bucket
Specifications
| Manufacturer | LEADWELL 5 Axis Vertical Machining Center |
| Model | V-40iT |
| Condition | New |
| Serial Number | L2TBB0071 |
| X axis travel | 846 mm/33.31" |
| Y axis travel | 635 mm/25" |
| Z axis travel | 488 mm/19.21" |
| Table size | 350 mm/13.78" |
| Permissible mass of workpiece | 200 kg/441 LBS (0-100), 45 kg/99 LBS (90-45) |
| Spindle speeds | 12,000 RPM |
| Maximum spindle torque | 70 Nm (30 min) |
| Feed rate | 36/36/36 m/min |
| Tool storage capacity | 24 |
| Maximum tool length | 300 mm/11.81" |
| Spindle motor | 15/18.5 KW |
| X/Y/Z axis feed motor | 4/4/4 KW |
| Power supply | 35 KVA |
| Dimensions | 151.18" x 86.61" x 107.13" |
| Machine weight | 7,000 kg/15,432 LBS |
