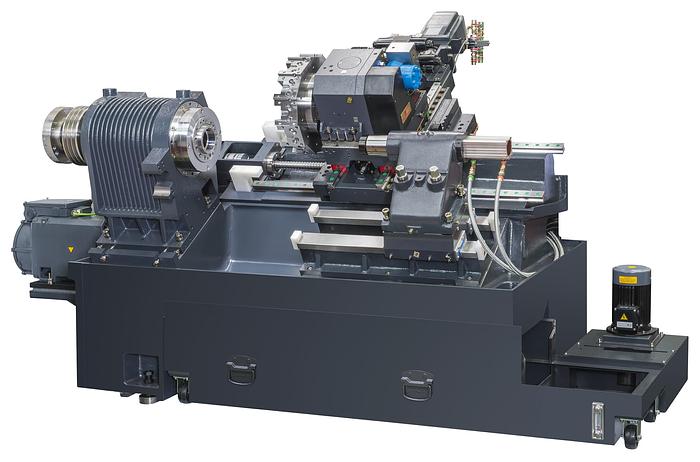

LEADWELL 2 Axis Horizontal Lathe (Linear Way) T-7A
No longer available
LEADWELL 2 Axis Horizontal Lathe (Linear Way) T-7A
Location:Elgin, IL
Description
Equipped with:
0i-TF/T3 control
Heat exchanger
3 jaw open center chuck
Foot switch
Chip conveyor w/bucket
Air gun
Coolant gun
Specifications
| Manufacturer | LEADWELL 2 Axis Horizontal Lathe (Linear Way) |
| Model | T-7A |
| Condition | New |
| Serial Number | L2TBA0659 |
| Maximum swing | 5202mm/19.69" |
| Swing over cross slide | 290mm/11.42" |
| Maximum turning diameter | 380mm/11.81" |
| Maximum turning length | 440mm/17.32" |
| Bar capacity | 65mm/2.56" |
| X axis travel | 190mm + 20mm/7.48" x .79" |
| Z axis travel | 450mm/17.72" |
| Spindle speed | 4,000 RPM |
| Chuck size | 8" |
| Spindle nose | A2-6 |
| Number of tool station | 12 tools (metric turret) |
