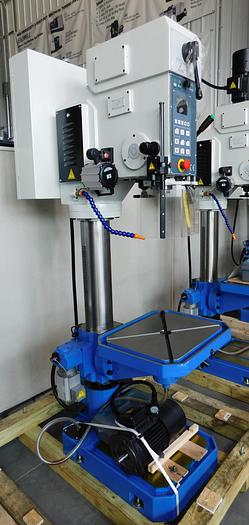

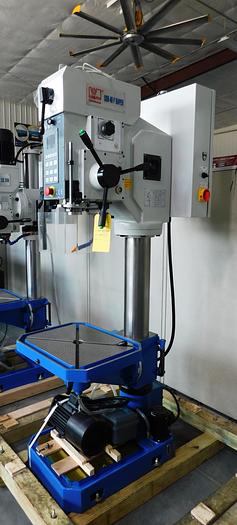

Knuth 26" Single Spindle Column Drill SSB 40 F
Sold
Knuth 26" Single Spindle Column Drill SSB 40 F
$16,975 (USD)
Location:Orange City, IA
Specifications
| Manufacturer | Knuth 26" Single Spindle Column Drill |
| Model | SSB 40 F |
| Condition | New |
| Serial Number | 5174 |
| Stock Number | 10784 |
| Drilling capacity | 1.57" |
| Tapping capacity | M24 |
| Table size | 21" x 17" |
| Quill stroke | 7" |
| Table vertical travel | 22.44" |
| Table swivel | +/- 45 degrees |
| Column diameter | 6" |
| Spindle to table distance | 26" |
| Throat depth | 13" |
| Speed range | 60-2600 RPM |
| Spindle taper | MT4 |
| Feeds | 0.004, 0.008, 0.0012, 0.0016 |
| Main motor | 2.7 HP |
| Dimensions | 40" x 26" x 88" |
| Machine weight | 1,100 LBS |
