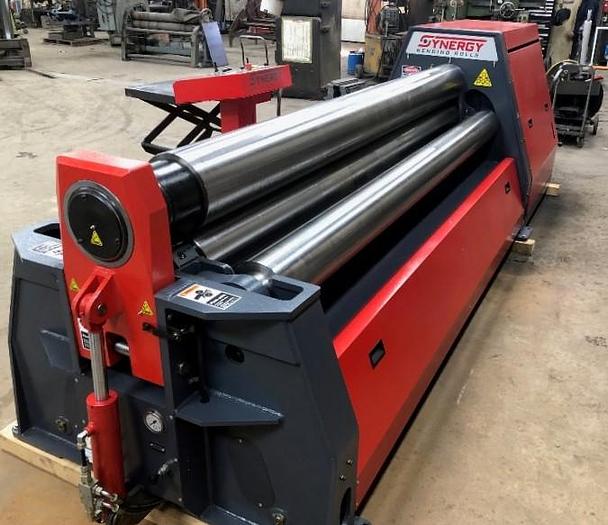

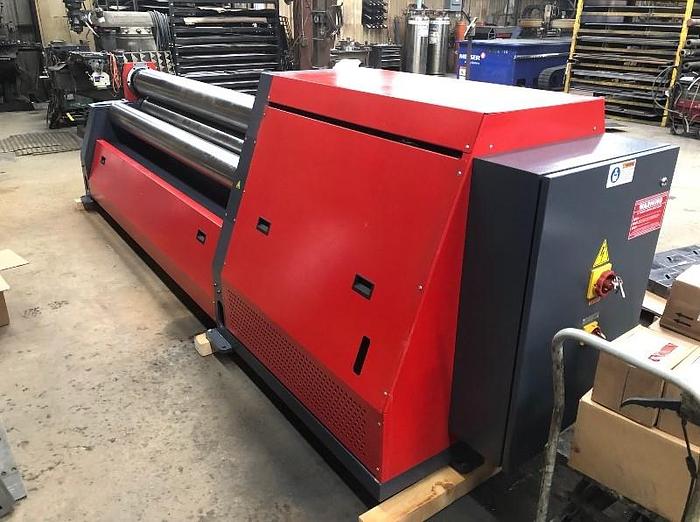

2021 Synergy Hydraulic 4 Roll Plate Bending Roll AH4-8/08

2021 Synergy Hydraulic 4 Roll Plate Bending Roll AH4-8/08

$69,500 (USD)

Location:Orange City, IA

orCall 712-737-8700


Equipped with:

Frame fabricated from high strength and stress relieved carbon steel

Hydraulic drive on top  and lower roll via hydraulic motors and planetary gear reducers, one for each roll

Dual rotation speed, controlled by selector switch on control console

PLC electronic balancing system

Digital readouts show the position of the side bending rolls

Cone bending attachment

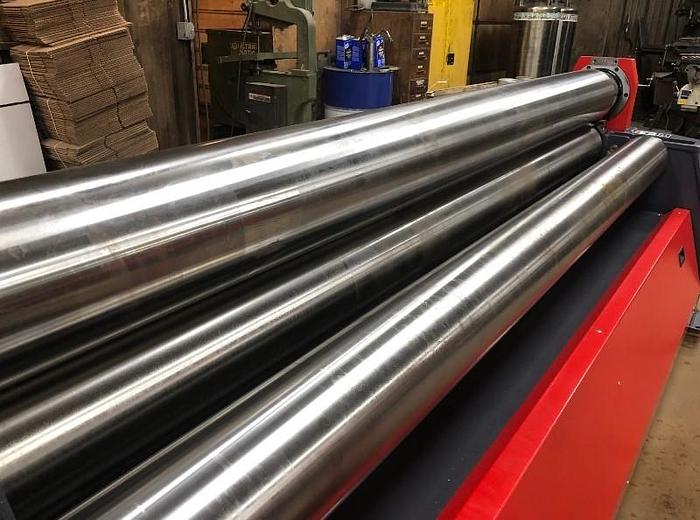

Induction hardened rolls 54-56 HRc

Polished roll surface

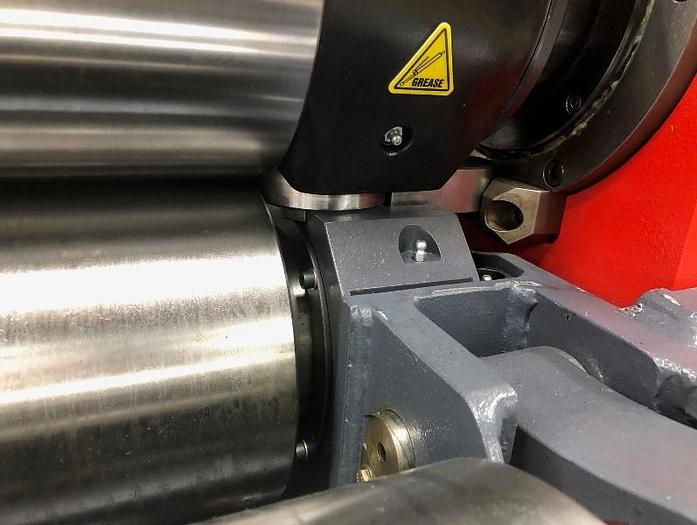

Spherical roller bearings on all journals

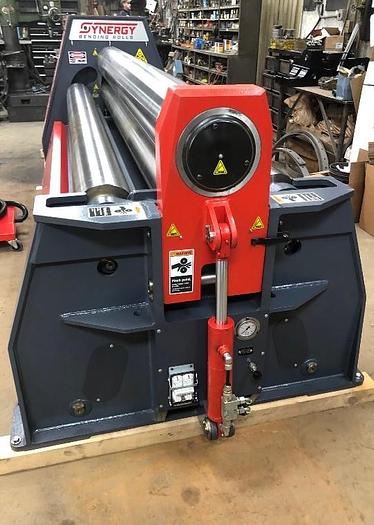

Hydraulic drop end for easy part removal

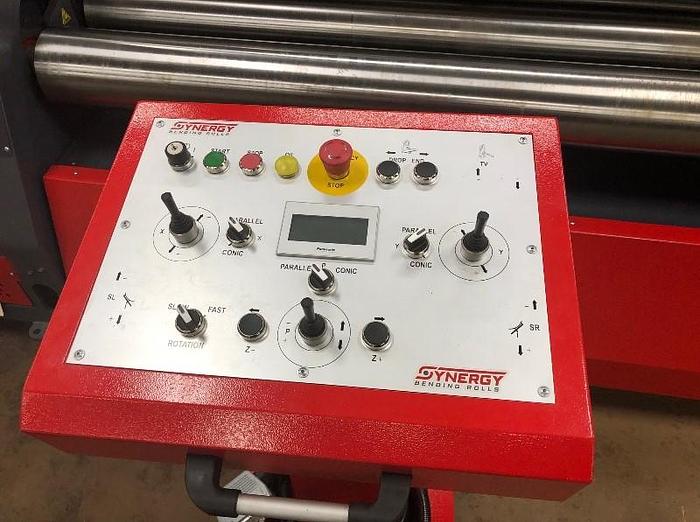

Remote console on wheels w/touchscreen PLC and push buttons

Complete electrical equipment including emergency stops and safety cable

Electrics for 3/60/22V or 3/60/460V

Tool kit and instruction manual

Hydraulic oil and lubricants are to be provided by the customer


ManufacturerSynergy Hydraulic 4 Roll Plate Bending Roll
Stock Number10790
Pre-bending capacity8' x 5/16" to 3x top roll diameter
Circular rolling capacity8' x 3/8" to 3x top roll diameter
Top roll diameter9.06"
Side rolls diameter7.48"
Bending roll surface100"
Rolling speed3'/16' per minute (2 speed)
Motor15 HP
Approximate dimensions170" x 46" x 46"
Approximate weight11,550 LBS
