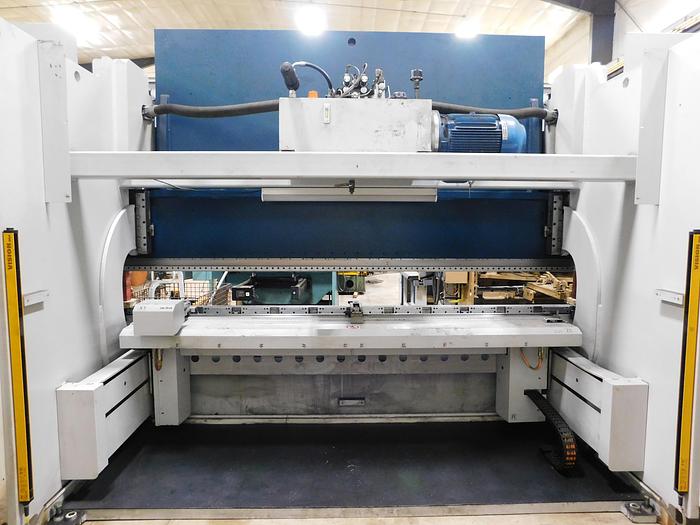

2017 Adira 13' x 180 Ton Hydraulic 8 Axis CNC Press Brake PA16040
2017 Adira 13' x 180 Ton Hydraulic 8 Axis CNC Press Brake PA16040
$135,000 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:

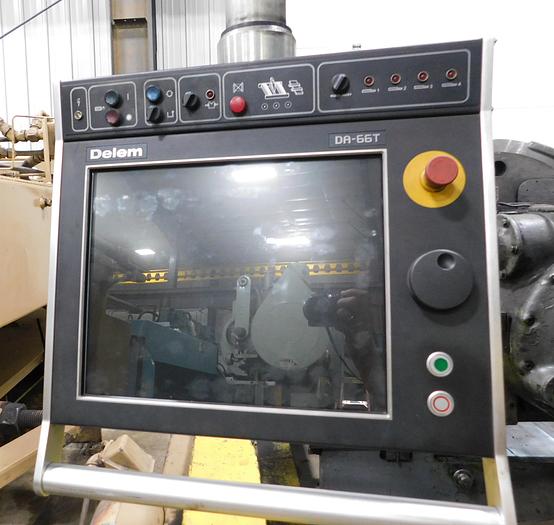

Delem 66T control
Hydraulic American clamping
5 axis backgauge
Crowning laser safe guarding
Rear guarding
(2) front arm supports
Green drive system
Specifications
| Manufacturer | Adira 13' x 180 Ton Hydraulic 8 Axis CNC Press Brake |
| Model | PA16040 |
| Year | 2017 |
| Condition | Used |
| Serial Number | M00000581 |
| Stock Number | 10805 |
| Tonnage | 180 ton |
| Bed length | 158" |
| Distance between housings | 124" |
| Maximum stroke | 10" |
| Maximum open height (no tools) | 20" |
| Throat depth | 16" |
| Approach speed | 354 IPM |
| Bend speed | 23 IPM |
| Return speed | 354 IPM |
| X axis stroke/speed | 24/1900 IPM |
| R axis stroke/speed | 8/470 IPM |
| Z1/Z2 A x B stroke/speed | 3.5-108/2800 IPM |
| X1 stroke/speed | 4/240 IPM |
| Motor HP | 22 HP, 480V, 3 PH |
| Dimensions | 183" x 72" x 115" |
| Machine weight | 25,000 |
