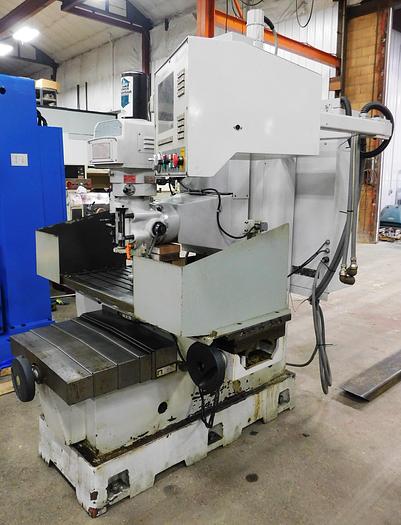

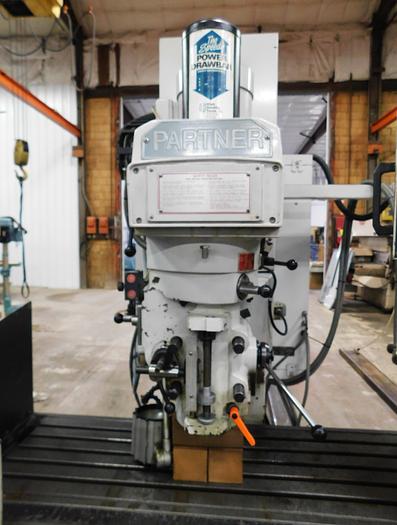

Milltronics MB20A 5 Axis CNC Bed Mill MB20A

Milltronics MB20A 5 Axis CNC Bed Mill MB20A

$25,900 (USD)

Location:Orange City, IA

or
Call 712-737-8700

Description

Equipped with:

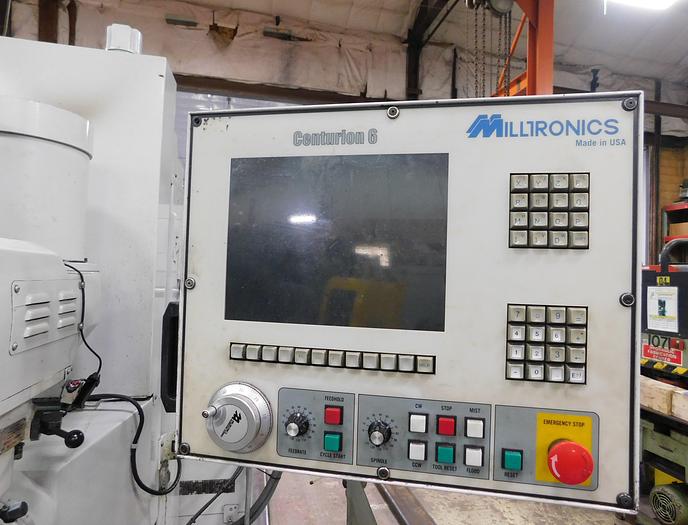

Centurion 6 control

Troyke TDL-10 trunnion table

Splash pads

Specifications

ManufacturerMilltronics MB20A 5 Axis CNC Bed Mill
ModelMB20A
ConditionUsed
Serial Number5406
Stock Number10826
Table size16" x 54"
X axis travel40"
Y axis travel20"
Z axis travel24"
Quill travel6"
Maximum table feed300 IPM
Maximum table load2,500 LBS
Lower speed range60-500 RPM
High speed range500-4000 RPM
Spindle taperCAT40
Main motor7.5 HP, 220V, 3 PH
Dimensions85" x 85" x 85"
Machine weight7,000 LBS
