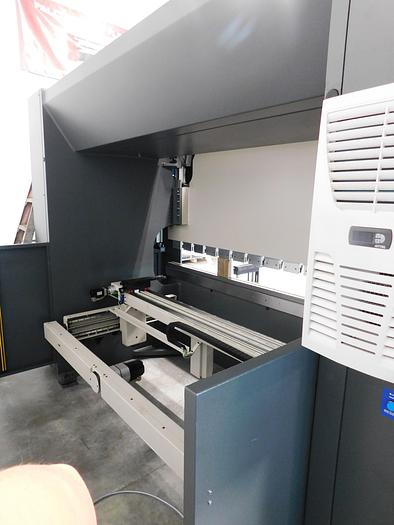

NEW HACO 10' x 165 Ton CNC Syncro Hydraulic Press Brake Euromaster ERM150
Featured
NEW HACO 10' x 165 Ton CNC Syncro Hydraulic Press Brake Euromaster ERM150
$183,745 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:

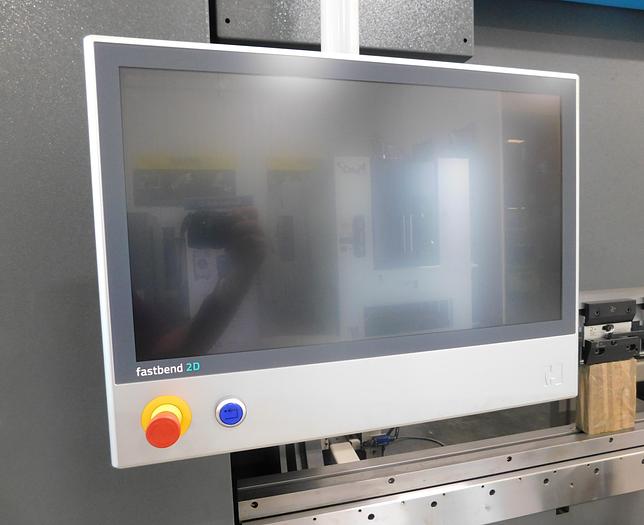

Control FastBEND-2D MT premium 21”
2 movable sheet supports type I
Back gauge X-R-Z1-Z2-X3
X axis stroke 40” (not on 6-axis BG)
UNIVERSAL FAST CLAMP height 4” – EUR and USA tooling
CNC crowning for System tooling + Single V
Air-conditioned electric cabinet
Euromaster S CE + Lasersafe light guard 6 mm
Specifications
| Manufacturer | NEW HACO 10' x 165 Ton CNC Syncro Hydraulic Press Brake |
| Model | Euromaster ERM150 |
| Condition | New |
| Serial Number | 85237 |
| Stock Number | 10835 |
| Working length | 122" |
| Capacity | 165 tons |
| Distance between side frames | 102" |
| Standard gap | 15.75" |
| Open height | 20.47" |
| Stroke | 10.6" |
| Table height | 36" |
| Fast approach speed | 472 IPM |
| Maximum working speed | 23.6 IPM |
| Fast return speed | 295 IPM |
| Motor power | 20 HP |
| Dimensions | 167" x 67" x 115" |
| Approximate weight | 21,385 LBS |
