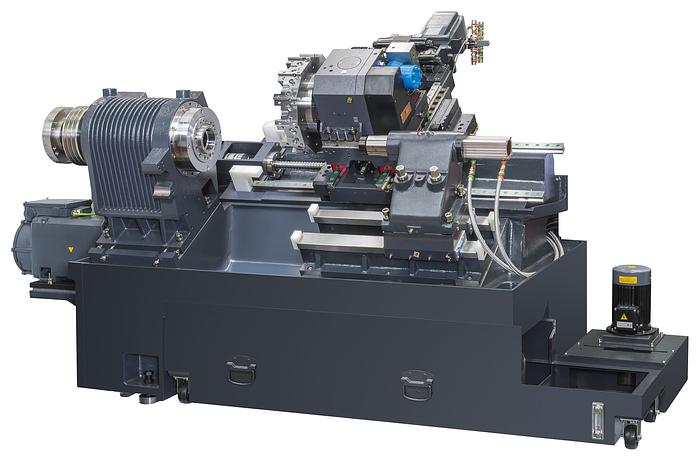

LEADWELL 2 Axis Horizontal Lathe (Linear Way) T7A-208
No longer available
LEADWELL 2 Axis Horizontal Lathe (Linear Way) T7A-208
Location:Hampshire, IL
Description
Equipped with:
Heat exchanger
Full enclosed splash guard
3 jaw open center chuck
Air gun
Coolant gun
Chip conveyor & bucket
Pallet packing
8" chuck + cylinder (Auto strong)
Specifications
| Manufacturer | LEADWELL 2 Axis Horizontal Lathe (Linear Way) |
| Model | T7A-208 |
| Condition | New |
| Serial Number | L2TBA0669 |
| Control type | Fanuc Oi-TF/T3 |
| Maximum swing | 19.69" |
| Swing over cross slide | 11.42" |
| Maximum turning diameter | 14.96" |
| Maximum turning length | 17.32" |
| Bar capacity | 2.56" |
| Maximum workpiece weight without tailstock | 52.91 LBS |
| X/Z axis travel | 7.48 + .79"/17.72" |
| Spindle speed | 4,000 RPM |
| Chuck size | 8" |
| Spindle nose | A2-6 |
| Number of tool station | 12 tools (SERVO) |
| Shank height for square tool | .98" |
| Shank diameter for boring bar | 1.57" |
| X/Z axis rapid traverse | 1,181 IPM |
| X/Z axis motor | 1.8 KW |
| Power supply | 30 KVA |
| Machine Dimensions | 147" x 67" x 71" |
| Machine weight | 7,880 LBS |
