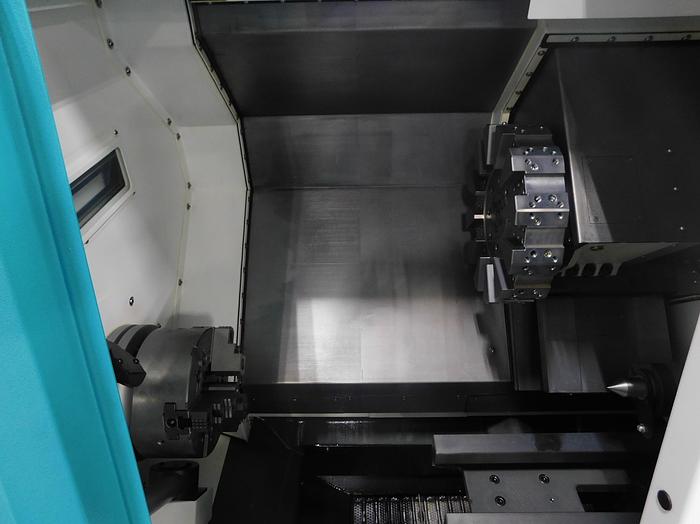

TRAK TC820si 2 Axis Turning Center
Featured
TRAK TC820si 2 Axis Turning Center
$84,225.03 (USD)
Location:Albert Lea, MN
or
Call 712-737-8700
Description
Equipped with:
Parts catcher
Transformer 208-480V
Chip cart
Chip conveyor
Clamp wedge set
3D simulation
Shop turn software
Coolant through turret
Tool setting probe and arm

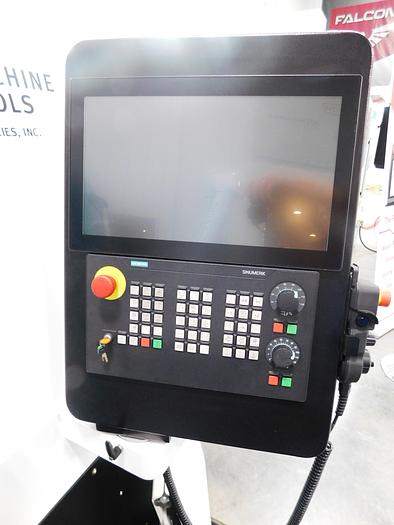

Siemens Sinumerik control
Specifications
| Manufacturer | TRAK TC820si 2 Axis Turning Center |
| Model | TC820si |
| Condition | New |
| Serial Number | 232FC804 |
| Stock Number | 10836 |
| Maximum swing | 15.75" |
| Swing over carriage cover | 11.81" |
| Maximum turned diameter | 8.66" |
| Maximum turnin length | 20" |
| Bar capacity | 2.56" |
| Spindle bore | 3.00" |
| Spindle speed range | 10-4000 RPM |
| Spindle mount | A2-6 |

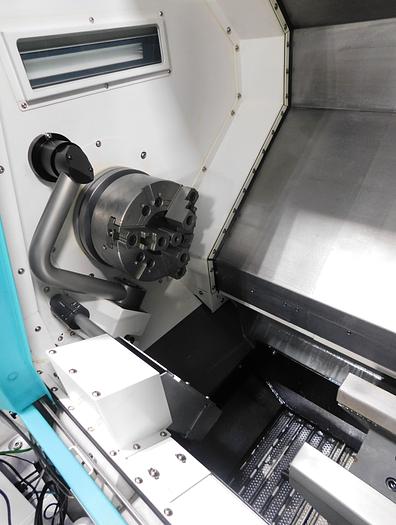

| Chuck diameter | 8" |
| Main drive system | Belt driven |
| Machine rapid speeds | 787 IPM on Z, 590 IPM on X |
| Main motor continuous power | 14.72 HP |
| Main motor peak power | 38 HP |

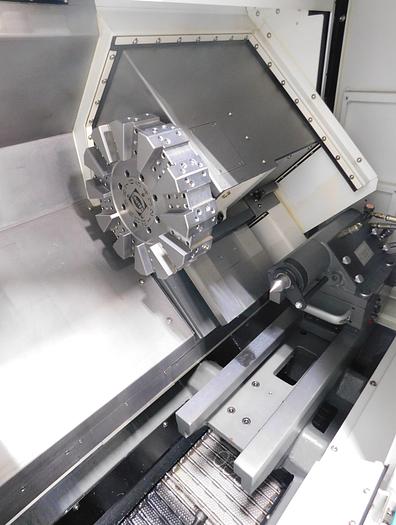

| Number of stations on turret | 12 stations |
| Tool shank dimensions | 0.75" x 0.75" |
| Maximum boring bar diameter | 1.25" |
| Tailstock taper | 4 MT |
| Quill travel | 4.13" |
| Full load amps | 33 Amps |
| Machine weight | 8,000 LBS |
| Machine Dimensions | 120" x 90" x 87" |
