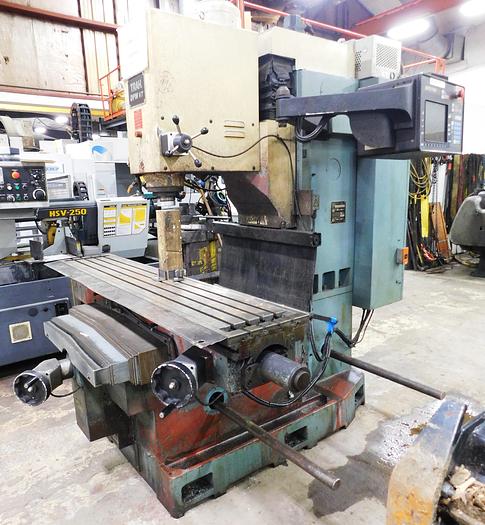

2007 TRAK DPM V7 CNC Vertical Mill VM7
2007 TRAK DPM V7 CNC Vertical Mill VM7
$27,500 (USD)
Orange City, IA
orCall 712-737-8700
Description
Equipped with:
ProtoTRAK VM control
10.4” LCD screen RS232 port
AGE conversational programming
2 or 3 axis
AC Servo drives
Electronic handwheels w/traking
Back splash and chip pan
Specifications
| Manufacturer | TRAK DPM V7 CNC Vertical Mill |
| Model | VM7 |
| Year | 2007 |
| Condition | Used |
| Serial Number | 061AZ14193 |
| Stock Number | 10863 |
| Table size | 76" x 14" |
| Table travels | 60" x 23" |
| Column travel | 20.5" |
| Spindle taper | #40 |
| Main spindle motor | 7.5 HP, 220V, 3 PH |
| Spindle speeds | 200-5,000 RPM |
| Spindle center to column | 23.75" |
| Spindle nose to table | 0-21.5" |
| Maximum weight of workpiece | 2,200 LBS |
| Table height from floor | 38.25" |
| Approximate machine dimensions | 110" x 93" |
| Machine weight | 7,975 LBS |
