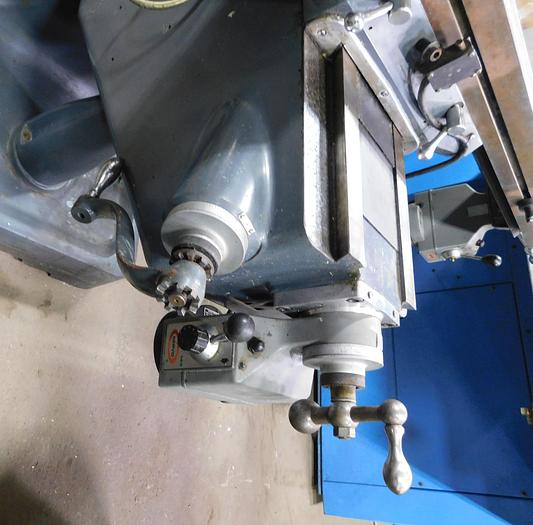

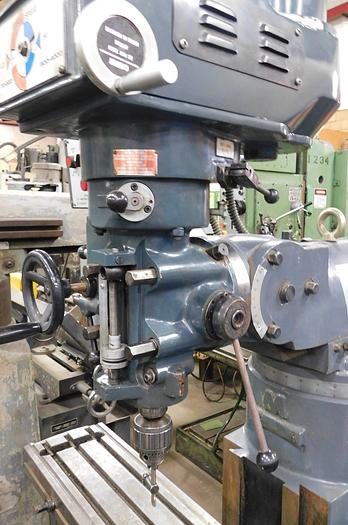

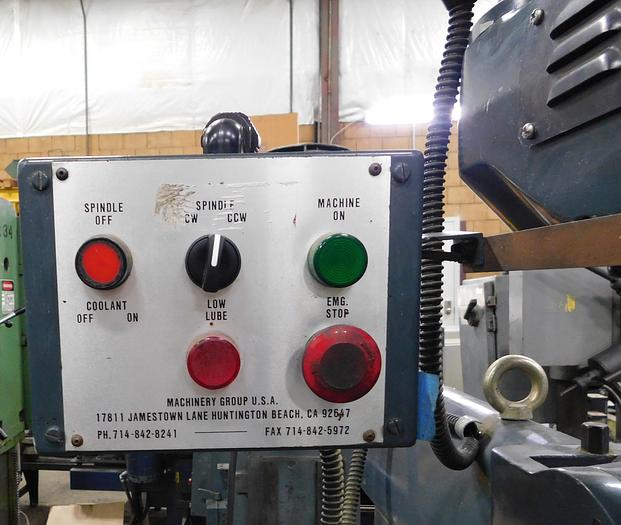

Amstar Vertical Milling Machine by Machinery Group MV-49
Amstar Vertical Milling Machine by Machinery Group MV-49
$6,250 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:
Chrome bed ways
X axis power feed, Servo 140
Y axis power feed, Servo 140
Auto lubrication
Jacobs ball bearing drill chuck
Specifications
| Manufacturer | Amstar Vertical Milling Machine by Machinery Group |
| Model | MV-49 |
| Condition | Used |
| Serial Number | 1689 |
| Stock Number | 10866 |
| Table size | 9" x 49" |
| Table travels | 12" x 30" |
| Knee travel | 16" |
| Main motor | 3 HP, 240/480V, 3 PH |
| Spindle speeds (low) | 70-500, variable |
| Spindle speeds (high) | 600-4,000, variable |
| Spindle taper | R-8 |
| Quill travel | 5" |
| Quill feed | 0.0015, 0.003, 0.006 |
| Dimensions | 4' x 4' x 7' |
| Machine weight | 2,750 LBS |
